Repair Procedures: Removal

  1. Remove the front bumper. (Refer to REPLACEMENT .
  2. Remove the bolt and disconnect the horn connector, then remove the high pitch horn (A) and low pitch horn (B).

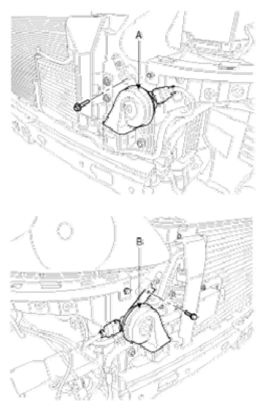

    Fig 1: Identifying High Pitch Horn & Low Pitch Horn
    G06858166Courtesy of HYUNDAI MOTOR CO.
