Diagnostic Circuit

WARNING: This page is about a different variant/trim than selected.

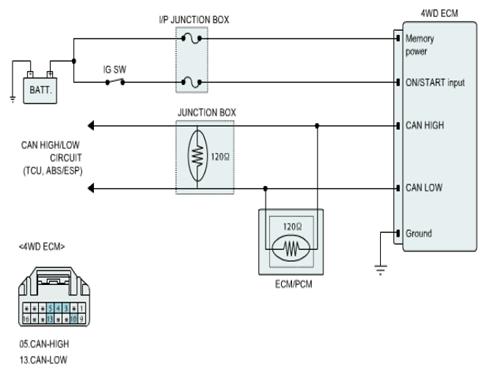

Fig 1: Lost Communication With Vehicle Dynamics Control Module - Diagnostic Circuit Diagram
G06862108Courtesy of HYUNDAI MOTOR CO.
