Component Location

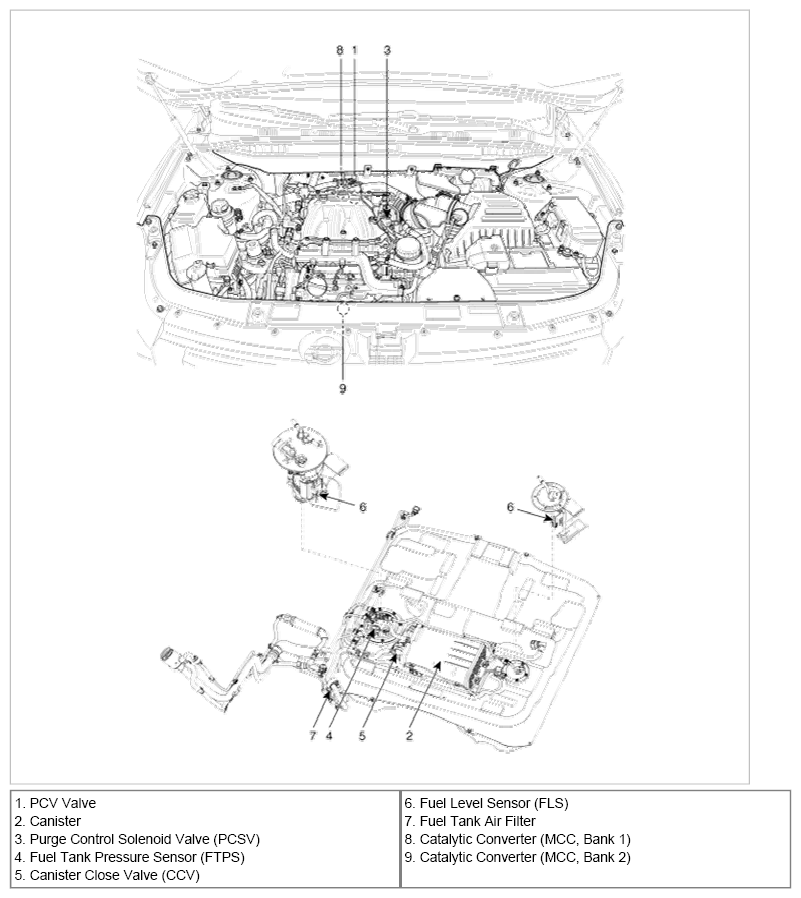

Fig 1: Identifying Evaporative Emission Control System Components (1 Of 2)
G06857071Courtesy of HYUNDAI MOTOR CO.

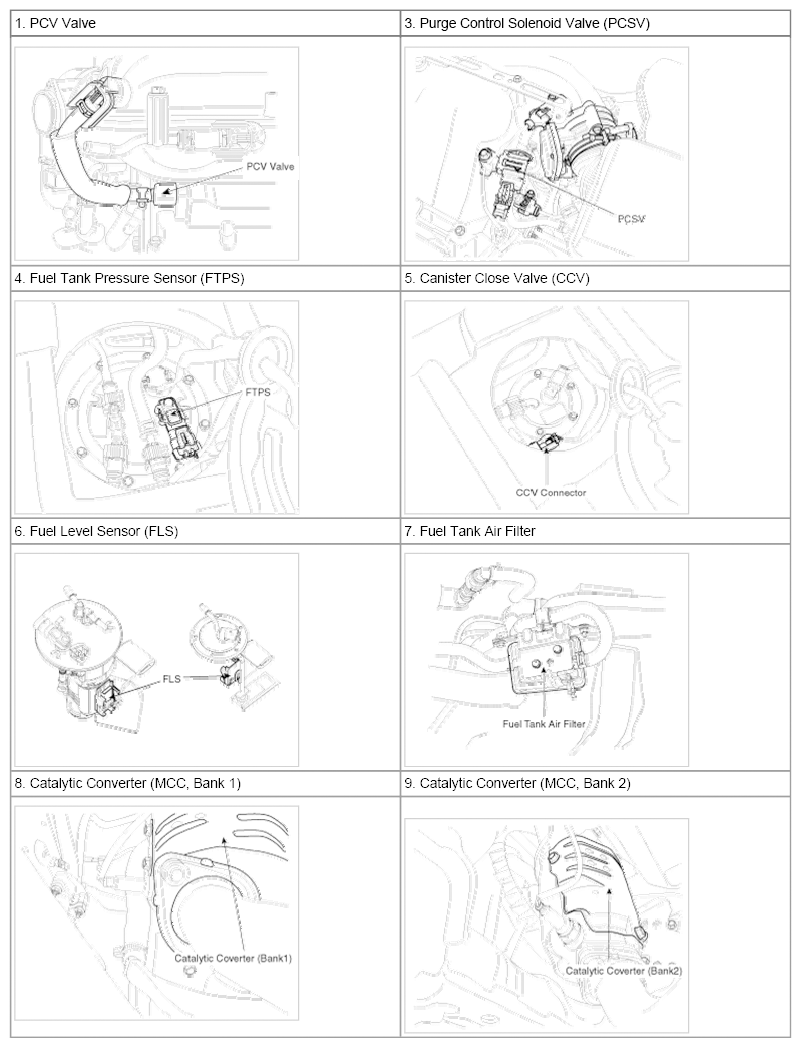

Fig 2: Identifying Evaporative Emission Control System Components (2 Of 2)
G06857072Courtesy of HYUNDAI MOTOR CO.
