Procedure Of ATF Level Confirming

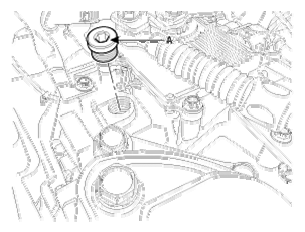

- Remove the filler plug (A) and the O-ring by using Torx wrench (T55) then add 400 cc of ATF from the oil filling hole.NOTE: In case, remove the air cleaner assembly.
- Start the engine.
- Shift from "P" to "D", then from "D" to "P", keeping each shift position "N","R" more than 2 seconds with foot braking.
- Repeat 2 times above procedure "3".

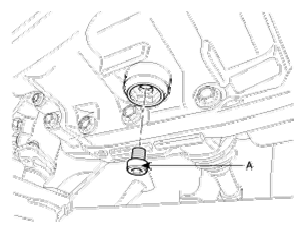

- Remove the overflow plug (A) and the O-ring by using Torx wrench (T40) when ATF temperature on CAN signal rises up to 50~60°C at stabilized idle speed condition.

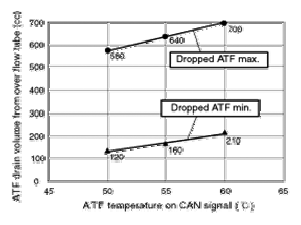

- Oil level is correct if ATF drain volume is in the range shown below.
- If the thin oil stream becomes drop by drop, fix the overflow plug with a new O-ring.
O-ring size: inner dia. - 6.07 mm, thickness - 1.78 mm
- Tighten the overflow plug by using Torx (T40) wrench with the specified torque.
Tightening torque:
6-9 N.m (0.6-0.9 kgf.m, 4.3-6.5 lb-ft)
- Fix the filler plug with a new O-ring.
O-ring size:
inner dia. - 15.41 mm, thickness - 2.21 mm
- Tighten the filler plug by using Torx (T55) wrench with the specified torque.
Tightening torque:
24-56 N.m (2.4-5.6 kgf.m, 17.4-40.5 lb-ft)
