Component Inspection 1

IG KEY OFF.
Remove the TCU.
Measure the resistance between "S1" solenoid-valve terminal and ground terminal of "S1" solenoid-valve.
Measure the resistance between "S2" solenoid-valve terminal and ground terminal of "S2" solenoid-valve.
1. Specification: Approx. 11 ~ 15 Ω (20°C)

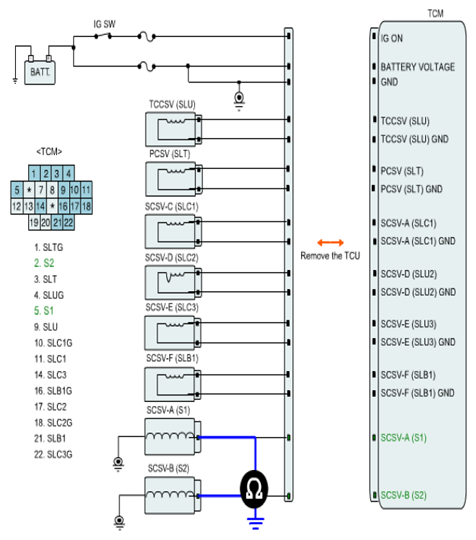

Fig 1: Measuring Resistance Between S1 & S2 Solenoid-Valve Terminal & Ground Terminal Of S1 & S2 Solenoid-Valve
Courtesy of HYUNDAI MOTOR CO.
Is resistance within specifications?
YES
1. Go to COMPONENT INSPECTION 2 procedure.
NO
1. Replace solenoid-valve as necessary and Go to VERIFICATION VEHICLE REPAIR procedure.
