Component Inspection: Notes

Fig 1: Shift Solenoid Valve Inspection Table
G00534609Courtesy of HYUNDAI MOTOR CO.
  1. Connect Oil pressure gauge to "C2".
  2. Engine "ON".
  3. Drive a car with gear position "6"
  4. Compare it with reference data as below.
    1. Specification: Refer to Standard Oil Pressure Table shown below
    SPECIFICATION TABLE

    STANDARD PRESSURE
    SHIFT LEVER POSITION ENGINE STATUS ELEMENT SPECIFICATION (Kg/cm2 )
    "D" RANGE IDLE C1 CLUTCH 3.8 ~ 4.4
    "R" RANGE IDLE C3 CLUTCH 5.9 ~ 7.1

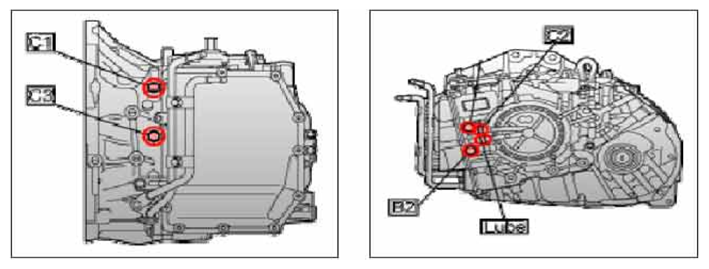

    Fig 2: Identifying Shift Solenoid Valves
    G06860910Courtesy of HYUNDAI MOTOR CO.
  5. Is oil pressure value within specification?

    YES

    1. Repair AUTO TRANSAXLE (Clutch or Brake) as necessary and Go to VERIFICATION VEHICLE REPAIR  procedure.

    NO

    1. Replace AUTO TRANSAXLE (BODY CONTROL VALVE faulty) as necessary and Go to VERIFICATION VEHICLE REPAIR  procedure.
