Repair Procedures: Installation

CAUTION: Apply the multipurpose grease to sliding of the each part before the installation.
  1. Install the steering column assembly to cowl member by tightening the mounting nuts (A).

    Tightening torque:

    13 ~ 18 N.m (1.3 ~ 1.8 kgf.m, 9 ~ 13 lb-ft)

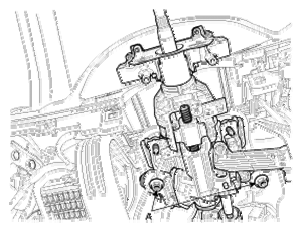

    Fig 1: Installing Steering Column Assembly
    G06857463Courtesy of HYUNDAI MOTOR CO.
  2. Tighten the steering column mounting bolts (A).

    Tightening torque:

    13 ~ 18 N.m (1.3 ~ 1.8 kgf.m, 9 ~ 13 lb-ft)

    Fig 2: Identifying Steering Column Mounting Bolts
    G06857464Courtesy of HYUNDAI MOTOR CO.
  3. Connect all connectors connected to the steering column assembly.
  4. Connect the universal joint assembly (B) with the steering column assembly and then tightening the bolt (A).

    Tightening torque:

    15 ~ 20 N.m (1.5 ~ 2.0 kgf.m, 11 ~ 14 lb-ft)

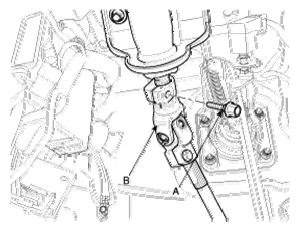

    Fig 3: Identifying Universal Joint Assembly Bolt
    G06857465Courtesy of HYUNDAI MOTOR CO.
  5. Install the reinforce panel (A) by tightening mounting bolts.
    Fig 4: Identifying Reinforce Panel
    G06857466Courtesy of HYUNDAI MOTOR CO.
  6. Install the multifunction switch (A) to the steering column assembly.

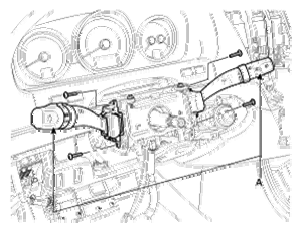

    Fig 5: Identifying Multifunction Switch
    G06857467Courtesy of HYUNDAI MOTOR CO.
  7. Install the clock spring (A) to steering column assembly and then connect the connectors.
    Fig 6: Identifying Clock Spring
    G06857468Courtesy of HYUNDAI MOTOR CO.
    CAUTION: When installing the clock spring, set the center position by setting the marks between the clock spring and the cover into line. Make an array the mark (→←) by turning the clock spring clockwise to the stop and then 2.0 revolutions counterclockwise.
  8. Install the steering column upper and lower shroud (A, B).

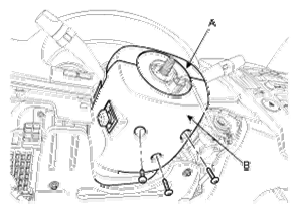

    Fig 7: Identifying Steering Column Upper & Lower Shroud
    G06857469Courtesy of HYUNDAI MOTOR CO.
  9. Install the lower crash pad (A).

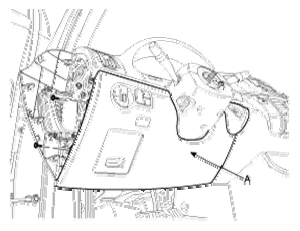

    Fig 8: Identifying Lower Crash Pad
    G06857470Courtesy of HYUNDAI MOTOR CO.
  10. Install the steering wheel to the steering column shaft and then tighten the lock nut and washer together.

    Tightening torque:

    40 ~ 50 N.m (4.0 ~ 5.0 kgf.m, 29 ~ 36 lb-ft)

  11. Connect the remote switch connector (A) and install the dynamic damper (B).

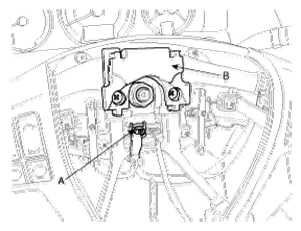

    Fig 9: Identifying Remote Switch Connector
    G06857471Courtesy of HYUNDAI MOTOR CO.
  12. Connect the air bag module and horn connector (A, B) to the air bag module and then install the air bag module to the steering wheel.
    Fig 10: Identifying Air Bag Module & Horn Connector
    G06857472Courtesy of HYUNDAI MOTOR CO.
  13. Tighten the torx bolts which are located on the both side of steering wheel.

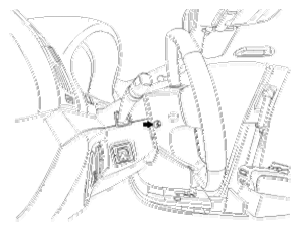

    Fig 11: Identifying Torx Bolts
    G06857473Courtesy of HYUNDAI MOTOR CO.
  14. Connect the battery negative cable to the battery.
