Components and Components Location: Components

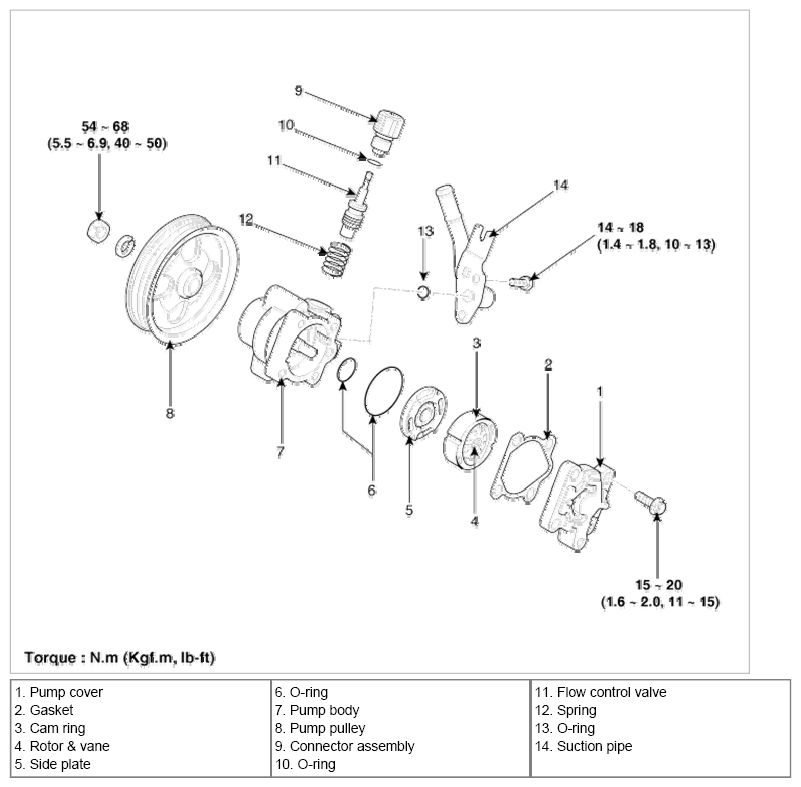

Fig 1: Power Steering Oil Pump Replacement Components With Torque Specifications

G06857524

Courtesy of HYUNDAI MOTOR CO.
