Components and Components Location: Components: Notes

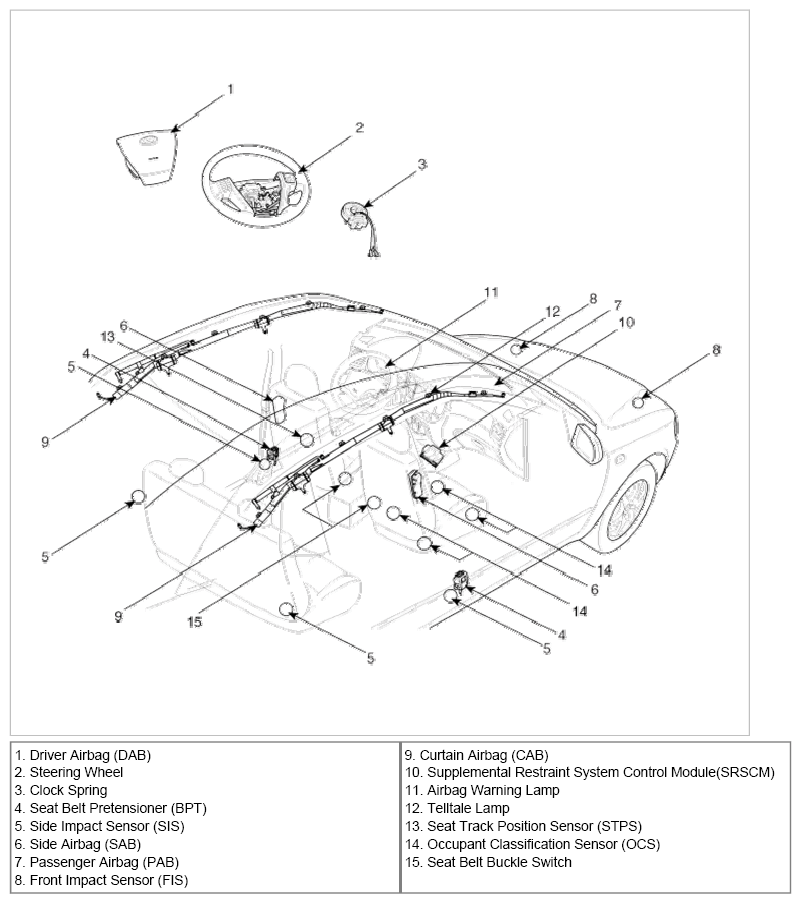

Fig 1: Identifying SRS System Components

G06857562

Courtesy of HYUNDAI MOTOR CO.
