Repair Procedures: Replacement

Disconnect the negative (-) battery terminal.
Remove the extensor cover (A).

Fig 1: Identifying Extensor Cover
Courtesy of HYUNDAI MOTOR CO.
Remove the glove box (Refer to GLOVE BOX REPLACEMENT )
Remove the crashpad lower panel (A).

Fig 2: Identifying Crashpad Lower Panel
Courtesy of HYUNDAI MOTOR CO.
After loosening the mounting screws and bolts, then remove the glove box housing (A).

Fig 3: Identifying Glove Box Housing
Courtesy of HYUNDAI MOTOR CO.
Disconnect the temperature control actuator connector (A) after removing the air duct.
Loosen the mounting screw and then remove the temperature control actuator (B).

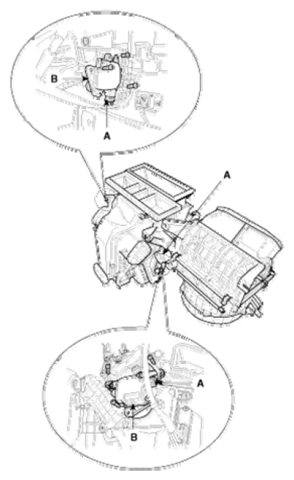

Fig 4: Identifying Temperature Control Actuator Connector
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse order of removal.
