Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel (A)
    Fig 1: Identifying Crash Pad Lower Panel
    G06858586Courtesy of HYUNDAI MOTOR CO.
  3. After loosening the mounting bolts, then remove the reinforcing panel (A).
    Fig 2: Identifying Reinforcing Panel
    G06858587Courtesy of HYUNDAI MOTOR CO.
  4. Disconnect the mode control actuator connector (A) after removing the air duct.
  5. Loosen the mounting screws and then remove the mode control actuator (B).

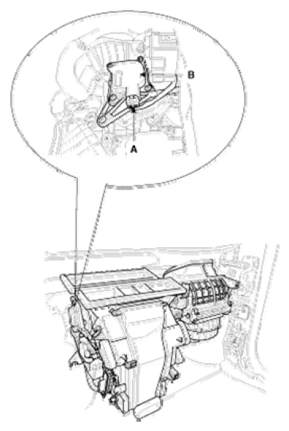

    Fig 3: Identifying Mode Control Actuator Connector
    G06858588Courtesy of HYUNDAI MOTOR CO.
  6. Installation is the reverse order of removal.
