Components and Components Location: Components

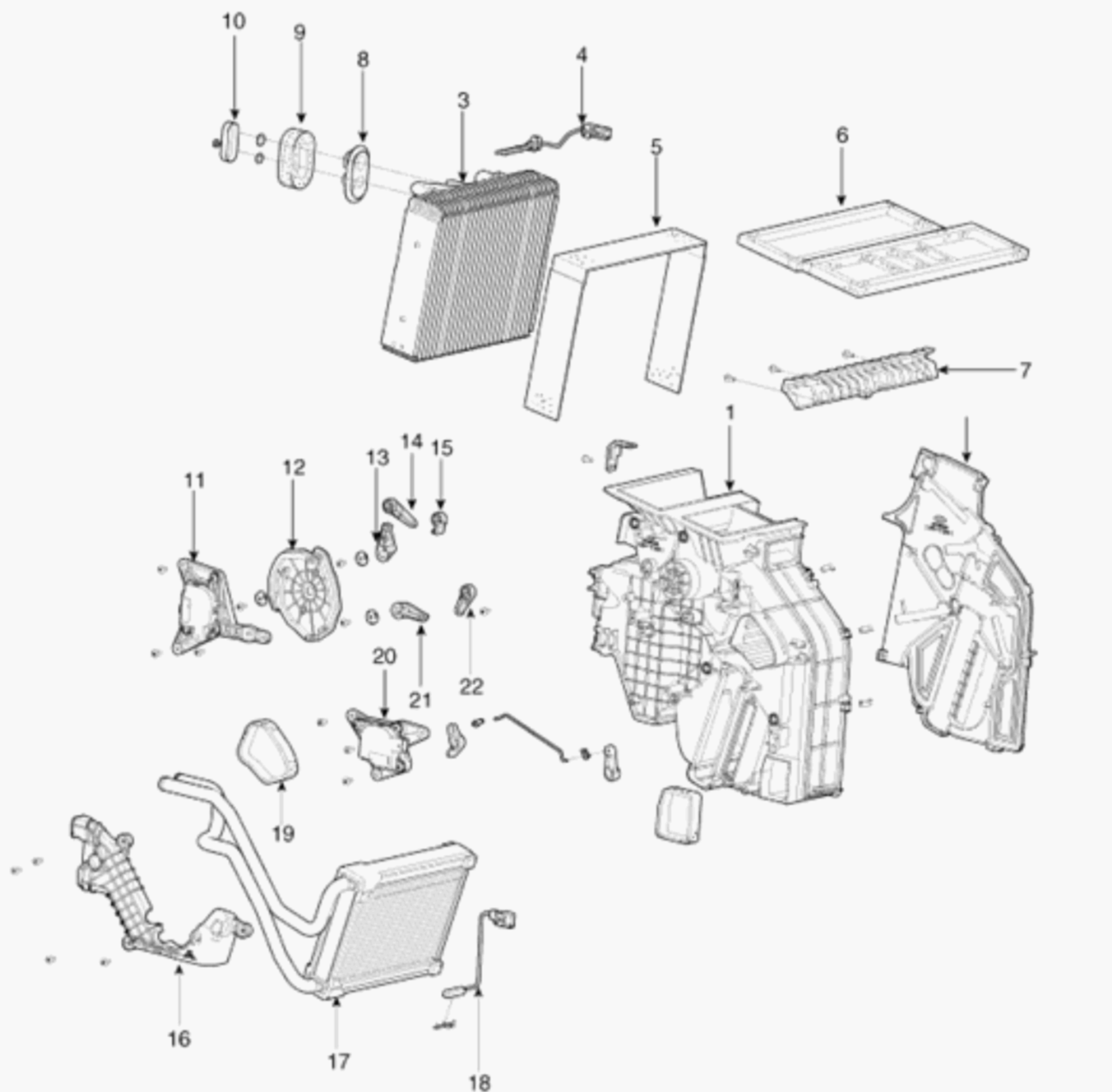

Fig 1: Identifying Evaporator Unit Components

Courtesy of HYUNDAI MOTOR CO.

The table contains the component call outs for the above Fig 1

EVAPORATOR UNIT COMPONENTS CALL OUTS

1. Heater case (L)	7. Def duct bracket	12. Mode cam	17. Heater core
2. Separator	8. Evaporator tube bracket	13. Def door	18. Water temperature sensor
3. Evaporator core	9. Evaporator tube bracket	14. Def door lever	19. Heater case seal
4. Evaporator temperature sensor	10. Joint flange cap	15. Vent door lever	20. Temp actuator
5. Evaporator core seal	11. Mode actuator	16. Heater core cover	21. Floor door lever
6. Cowl seal	22. Floor door arm

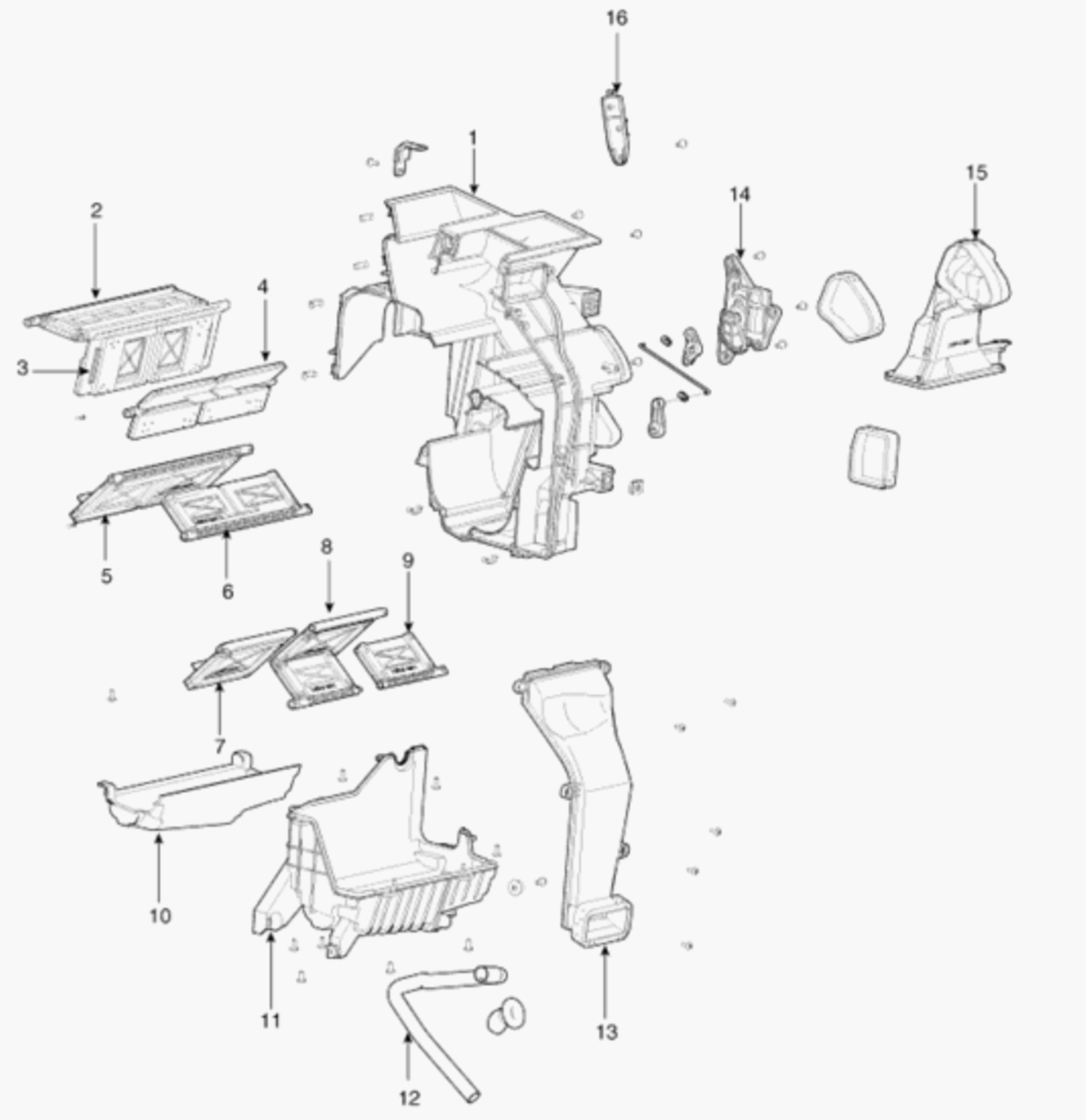

Fig 2: Identifying Heater Unit Components

Courtesy of HYUNDAI MOTOR CO.

The table contains the component call outs for the above Fig 2

HEATER UNIT COMPONENTS CALL OUTS

1. Heater case (R)	6. Temp door (A)	11. Heater lower case
2. Def door	7. Temp door	12. Drain hose
3. Vent door	8. Temp door	13. Air duct (For cool box)
4. Floor door	9. Temp door (A)	14. Temp actuator
5. Temp door	10. Lower heater insulator	15. Shower duct
16. Water temp sensor connector bracket
