Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Disconnect the power mosfet connector at the connecting part between heater and blower unit.
  3. Remove the power mosfet (B) after loosening the mounting screws.

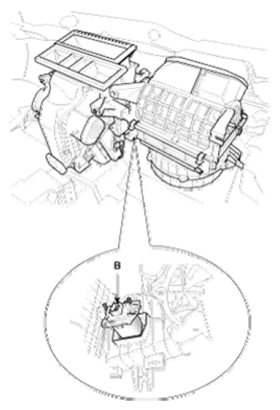

    Fig 1: Identifying Power Mosfet
    G06858619Courtesy of HYUNDAI MOTOR CO.
  4. Installation is the reverse order of removal.
