Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box (Refer to GLOVE BOX REPLACEMENT ).
  3. Disconnect the intake actuator connector.
  4. Loosen the mounting screw and then remove the intake actuator (A) from the blower unit.

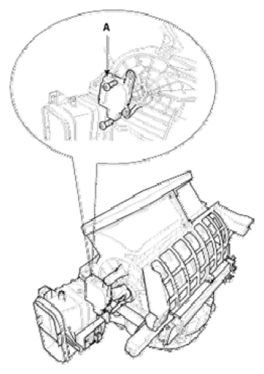

    Fig 1: Identifying Intake Actuator
    G06858625Courtesy of HYUNDAI MOTOR CO.
  5. Installation is the reverse order of removal.
