Components and Components Location: Components

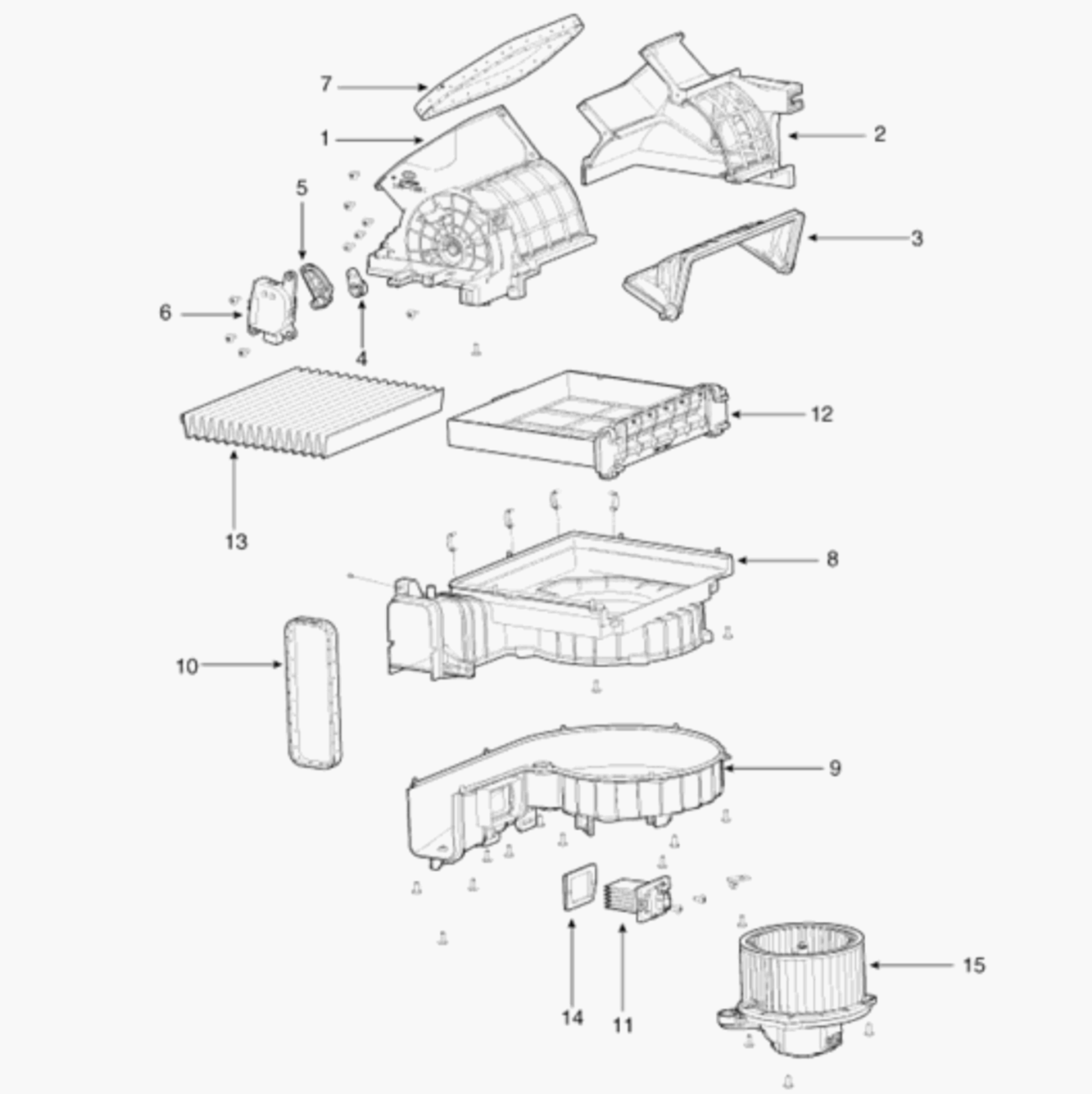

Fig 1: Exploded View Of Internal Blower Unit Components

Courtesy of HYUNDAI MOTOR CO.

INTERNAL BLOWER UNIT COMPONENTS CALL OUT

1. Inlet duct (L)	6. Intake actuator	11. Power mosfet
2. Inlet duct (R)	7. Rec. duct seal	12. Climate control air filter cover
3. Door	8. Blower upper case	13. Climate control air filter
4. Inlet door arm	9. Blower lower case	14. Power mosfet seal
5. Inlet door lever	10. Blower seal	15. Blower motor
