Diagnostic Circuit

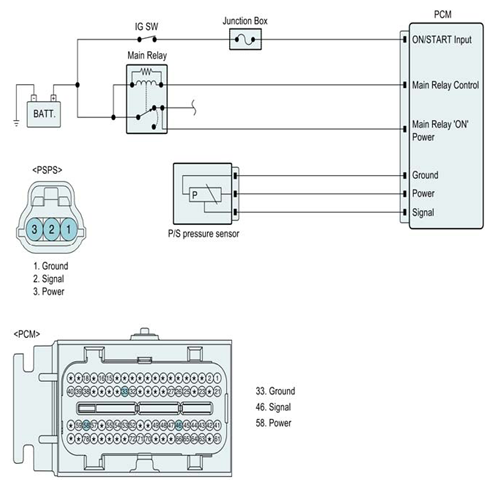

Fig 1: Power Steering Pressure Sensor Switch Circuit High Input - Diagnostic Circuit Diagram
G06860443Courtesy of HYUNDAI MOTOR CO.
