Ground Circuit Inspection

Check open in harness
1. IG "OFF" and disconnect Instrument cluster connector and Fuel Level Sender A connector.
2. Measure resistance between ground terminal of Fuel Level Sender A harness connector and Fuel ground terminal of Instrument cluster harness connector.
  1. Specification: Below 1 Ω

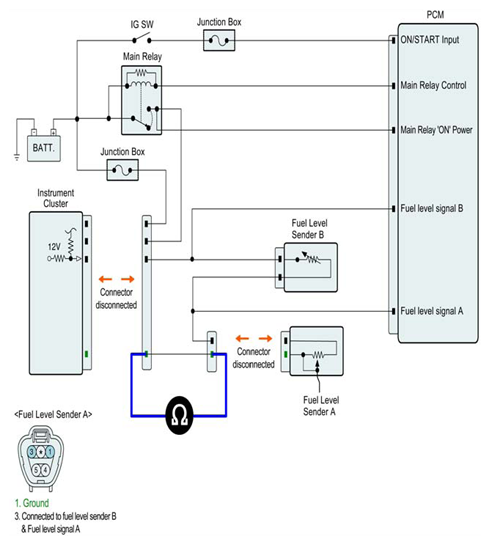

  Fig 1: Measuring Resistance Between Ground Terminal Of Fuel Level Sender A Connector & Fuel Ground Terminal Of Instrument Cluster Connector
  Courtesy of HYUNDAI MOTOR CO.
3. Is the measured resistance within specification?
  YES
  1. Go to COMPONENT INSPECTION procedure.
  NO
  1. Repair open in harness and go to VERIFICATION OF VEHICLE REPAIR procedure.
