Component Inspection

■ Check injector
1. IG "OFF" and disconnect injector connector.
2. Measure resistance between power and control terminals of injector connector. (Component side)
  1. Specification: 11.4 ~ 12.6 Ω (at 20°C/68°F)

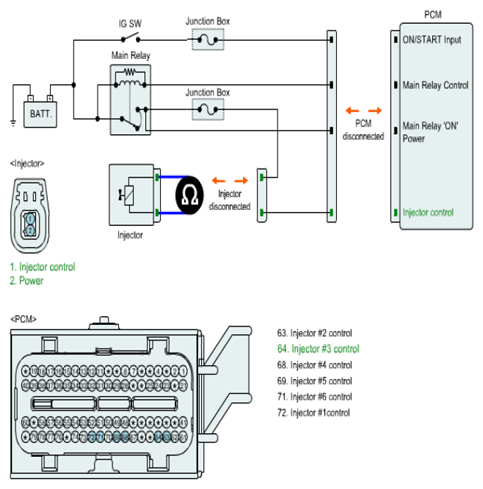

  Fig 1: Measuring Resistance Between Power And Control Terminals Of Injector Connector
  Courtesy of HYUNDAI MOTOR CO.
3. Is the measured resistance within specification?
  YES
  1. Substitute with a known - good PCM and check for proper operation.
    If the problem is corrected, replace PCM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  1. Substitute with a known - good injector and check for proper operation.
    If the problem is corrected, replace injector and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NOTE: There is a memory reset function on scantool that can erase optional parts automatically detected and memorized by PCM. After testing PCM on the vehicle, use this function to reuse the PCM on the others
