Signal Circuit Inspection

■ Check Voltage
1. IG "OFF"&ENG "OFF"
2. Disconnect OTS connector
3. IG "ON"&ENG "OFF"
4. Measure voltage between harness signal terminal of OTS and chassis ground.
  1. Specification: Approx. 5V

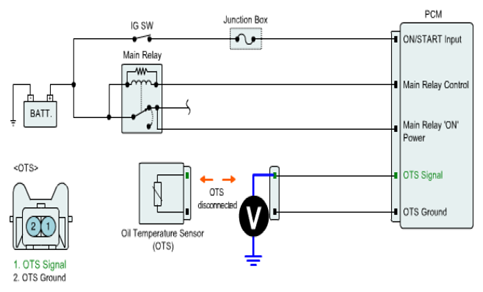

  Fig 1: Measuring Voltage Between Harness Signal Terminal Of OTS & Chassis Ground
  Courtesy of HYUNDAI MOTOR CO.
5. Is the measured voltage within specification?
  YES
  1. Go to "GROUND CIRCUIT INSPECTION " procedure.
  NO
  1. Go to "Check open in harness" as follow.
- ■ Check open in harness
  1. IG "OFF"& ENG "OFF"
  2. Disconnect OTS and PCM connector.
  3. Measure resistance between signal terminal of OTS harness connector and OTS signal terminal of PCM harness connector.
    1. Specification : Approx. below 1Ω

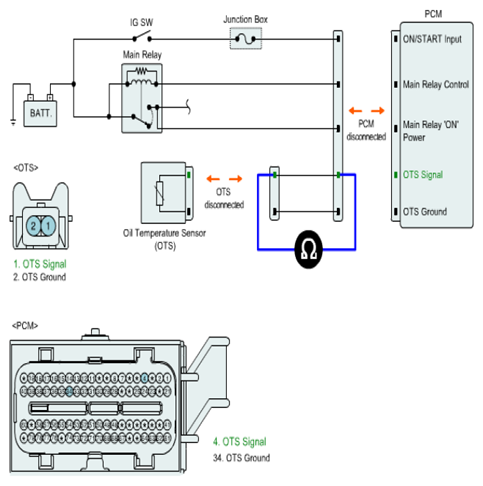

    Fig 2: Measuring Resistance Between Signal Terminal Of OTS Connector & OTS Signal Terminal Of PCM Connector
    Courtesy of HYUNDAI MOTOR CO.
  4. Is the measured resistance within specification?
    YES
    1. Go to "GROUND CIRCUIT INSPECTION " procedure.
    NO
    1. Repair or replace open in harness, and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
