Signal Circuit Inspection

■ Check Voltage
1. IG "OFF"&ENG "OFF"
2. Disconnect OTS connector
3. IG "ON"&ENG "OFF"
4. Measure voltage between harness signal terminal of OTS and chassis ground.
  1. Specification: Approx. 5V

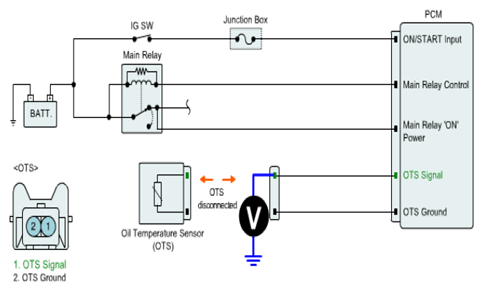

  Fig 1: Measuring Voltage Between Harness Signal Terminal Of OTS & Chassis Ground
  Courtesy of HYUNDAI MOTOR CO.
5. Is the measured voltage within specification?
  YES
  1. go to "COMPONENT INSPECTION " procedure.
  NO
  1. Repair short to ground in harness, and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
