Repair procedures: Removal

Preparation
1. Remove the 2nd seat (Refer to REAR SEAT ).

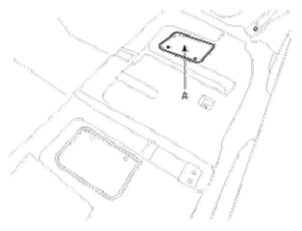

2. Open the carpet for fuel pump (A).

  Fig 1: Identifying Carpet For Fuel Pump
  Courtesy of HYUNDAI MOTOR CO.

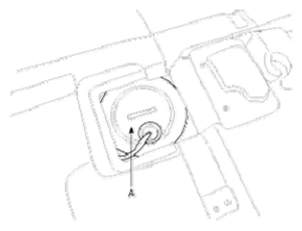

3. Remove the service cover of the fuel pump (A).

  Fig 2: Identifying Fuel Pump
  Courtesy of HYUNDAI MOTOR CO.
4. Disconnect the fuel pump connector (A).

  Fig 3: Identifying Fuel Pump Connector
  Courtesy of HYUNDAI MOTOR CO.
5. Start the engine and wait until fuel in fuel line is exhausted.
6. After engine stops, turn the ignition switch off.

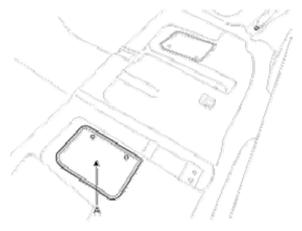

Open the carpet of the sub fuel sender (A).

Fig 4: Identifying Carpet Of Sub Fuel Sender
Courtesy of HYUNDAI MOTOR CO.

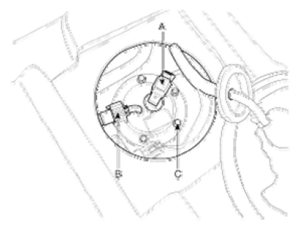

Disconnect the sub fuel sender connector (A) and the suction tube quick-connector (B)

Fig 5: Identifying Sub Fuel Sender Connector
Courtesy of HYUNDAI MOTOR CO.
Remove the sub fuel sender from the fuel tank after unfastening the sub fuel sender installation bolts (C).

Fig 6: Identifying Sub Fuel Sender Installation Bolts
Courtesy of HYUNDAI MOTOR CO.
