Repair procedures: Removal

  1. Preparation
    1. Remove the 2nd seat (Refer to REAR SEAT ).
    2. Open the carpet for fuel pump (A).

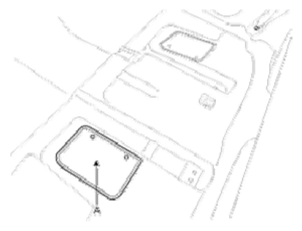

      Fig 1: Identifying Fuel Pump Service Cover
      G06861414Courtesy of HYUNDAI MOTOR CO.
    3. Remove the service cover of the fuel pump (A).

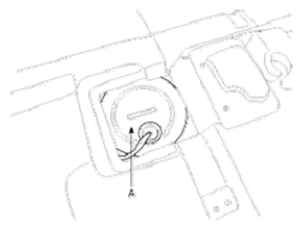

      Fig 2: Identifying Fuel Pump
      G06861415Courtesy of HYUNDAI MOTOR CO.
    4. Disconnect the fuel pump connector (A).
      Fig 3: Identifying Fuel Pump Connector
      G06861416Courtesy of HYUNDAI MOTOR CO.
    5. Start the engine and wait until fuel in fuel line is exhausted.
    6. After engine stops, turn the ignition switch off.
  2. Disconnect the fuel tank pressure sensor connector (A).

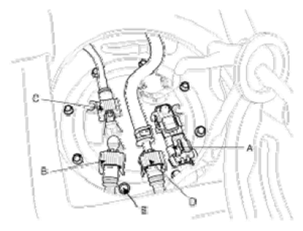

    Fig 4: Identifying Fuel Tank Pressure Sensor Connector
    G06861417Courtesy of HYUNDAI MOTOR CO.
  3. Disconnect the fuel feed tube quick-connector (B), the suction tube quick-connector (C), and the vacuum tube quick-connector (D).
  4. Remove the fuel pump after unfastening the fuel pump installation bolts (E).
    Fig 5: Identifying Fuel Pump
    G06861418Courtesy of HYUNDAI MOTOR CO.
