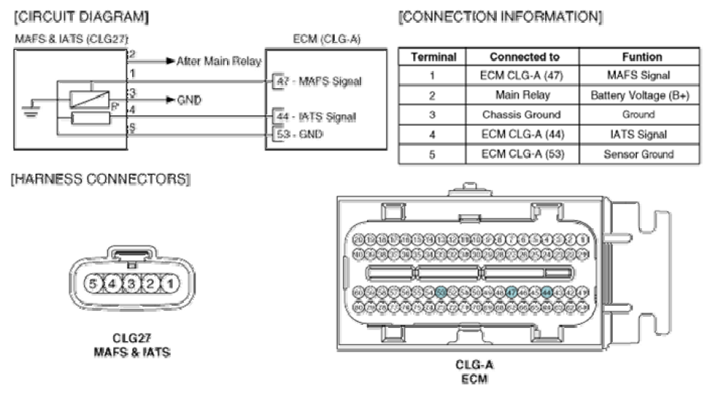

Home >> Hyundai >> 2012 >> Veracruz GLS, AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Mass Air Flow Sensor (MAFS) >> Schematic Diagrams >> Circuit Diagram
