Oil pump

Drain engine oil.
Using the SST (09215-3C000) remove the lower oil pan (A).

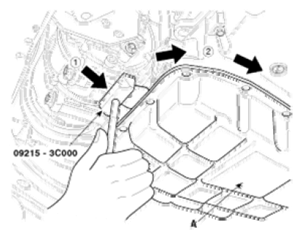

Fig 1: Identifying Lower Oil Pan
Courtesy of HYUNDAI MOTOR CO.

NOTE: Be careful not to damage the contact surfaces of upper oil pan and lower oil pan.
CAUTION:
- Insert the SST between the oil pan and the ladder frame by tapping it with a plastic hammer in the direction of (1) arrow.
- After tapping the SST with a plastic hammer along the direction of (2) arrow around more than 2/3 edge of the oil pan, remove it from the ladder frame.
- Do not turn over the SST abruptly without tapping.
  It can result in damage of the SST.
Remove the oil pump chain cover (A).

Fig 2: Identifying Oil Pump Chain Cover
Courtesy of HYUNDAI MOTOR CO.
Remove the oil pump chain sprocket (A).

Fig 3: Identifying Oil Pump Chain Sprocket
Courtesy of HYUNDAI MOTOR CO.
Remove the oil pump (A).

Fig 4: Identifying Oil Pump
Courtesy of HYUNDAI MOTOR CO.
