Repair procedures: Installation: Radiator

  1. Install the radiator.
  2. Install the radiator bracket.
  3. Reconnect the radiator fan connector.
  4. Connect the transaxle oil cooler hoses.
  5. Connect the radiator upper and lower hoses (A).
    Fig 1: Identifying Radiator Upper And Lower Hoses
    G06856887Courtesy of HYUNDAI MOTOR CO.

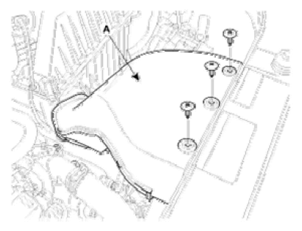

  6. Install the air duct (A).
    Fig 2: Identifying Air Duct
    G06856888Courtesy of HYUNDAI MOTOR CO.
  7. Fill with engine coolant.
  8. Start engine and check for leaks.
  9. Recheck engine coolant level.
