Home >> Hyundai >> 2012 >> Veracruz GLS, AWD >> Repair and Diagnosis >> Engine Mechanical >> Cooling System (Mechanical) >> Engine Cooling System >> Components and Components Location >> Components

Components and Components Location: Components

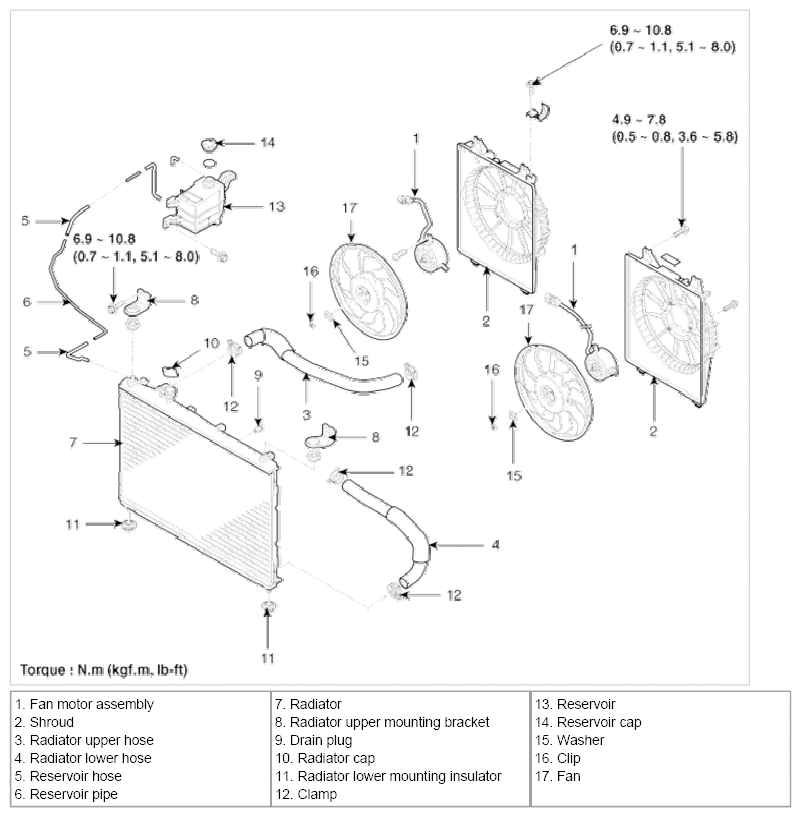

Fig 1: Cooling System Components With Torque Specifications
G06856868Courtesy of HYUNDAI MOTOR CO.

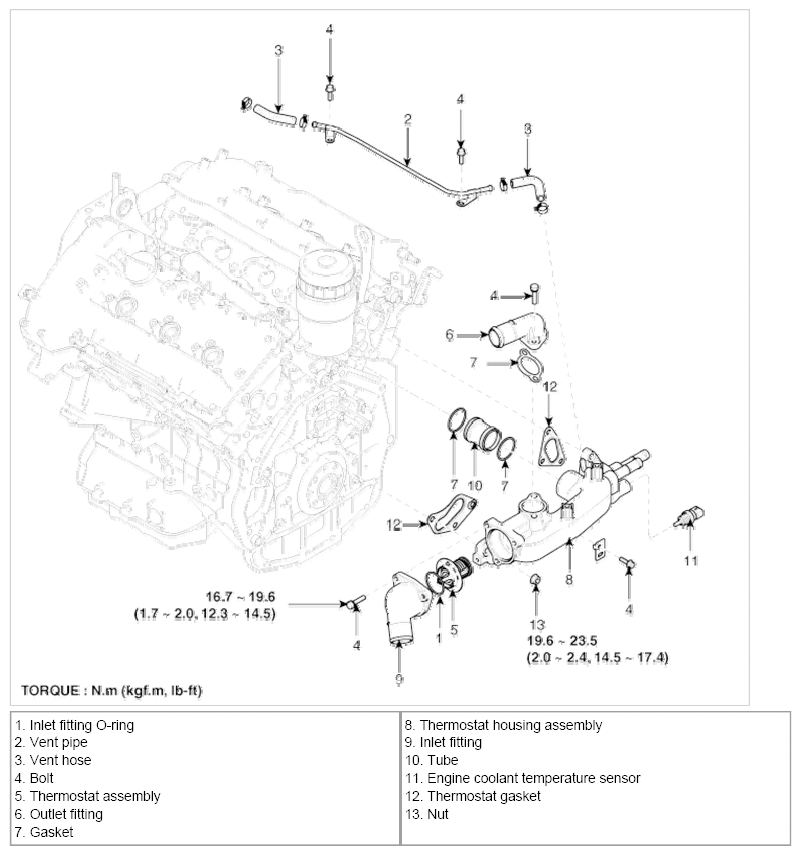

Fig 2: Cooling System Components With Torque Specifications
G06856869Courtesy of HYUNDAI MOTOR CO.
