Component Location

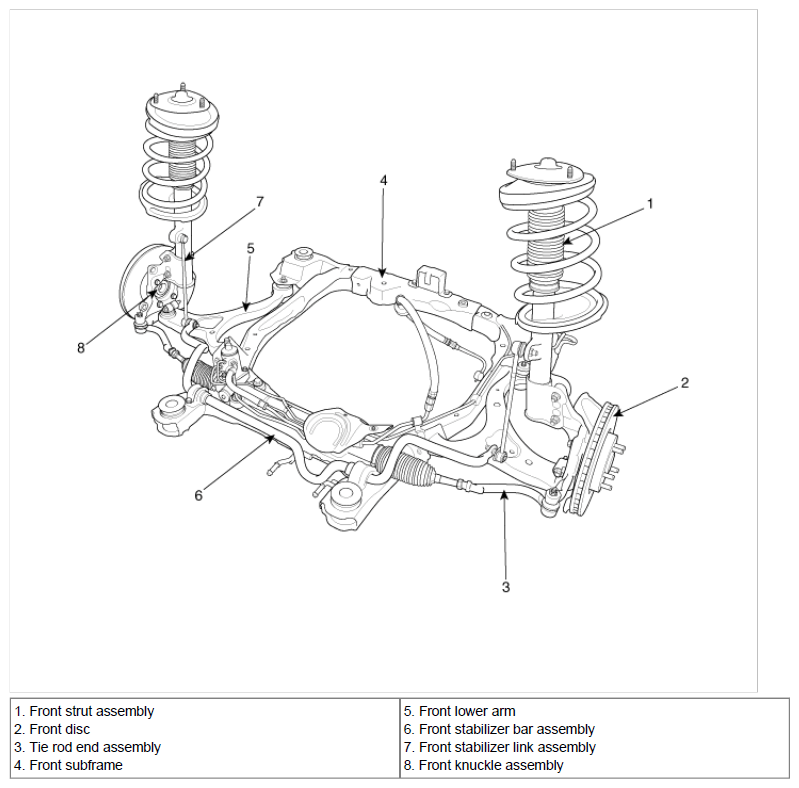

Fig 1: Front Axle Assembly Replacement Components With Torque Specifications (1 Of 2)
G06857171Courtesy of HYUNDAI MOTOR CO.

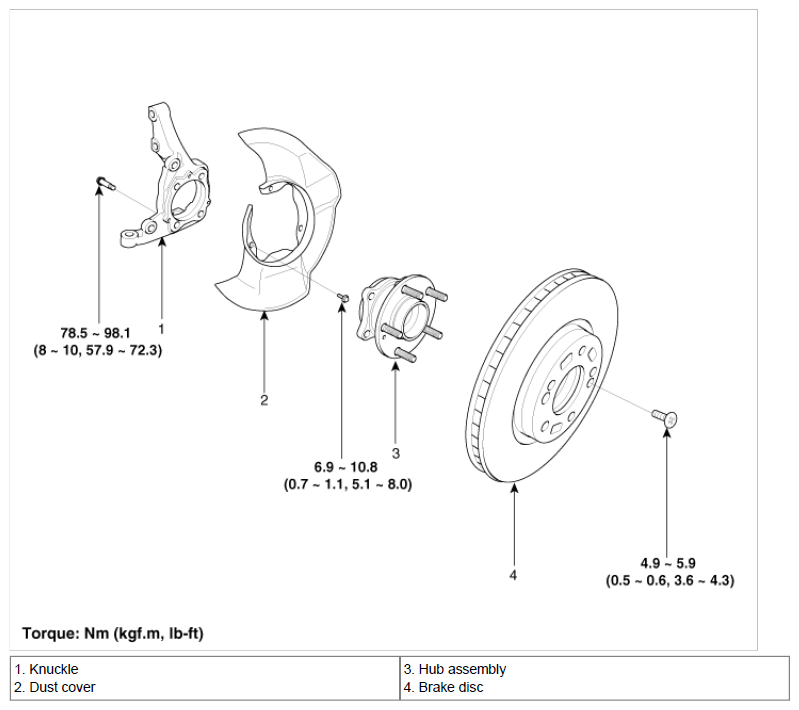

Fig 2: Front Axle Assembly Replacement Components With Torque Specifications (2 Of 2)
G06857172Courtesy of HYUNDAI MOTOR CO.
