Repair Procedures: Replacement

  1. Remove the extension side cover. (Refer to CONSOLE )
  2. Disconnect the yaw rate & lateral G sensor connector.
  3. Remove the mounting nuts (A).

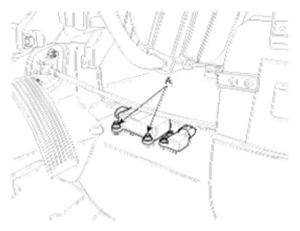

    Fig 1: Identifying Mounting Nuts
    G06857847Courtesy of HYUNDAI MOTOR CO.
  4. Disconnect the yaw rate & lateral G sensor connector.
  5. Installation is the reverse of removal.
