Components and Components Location: Components

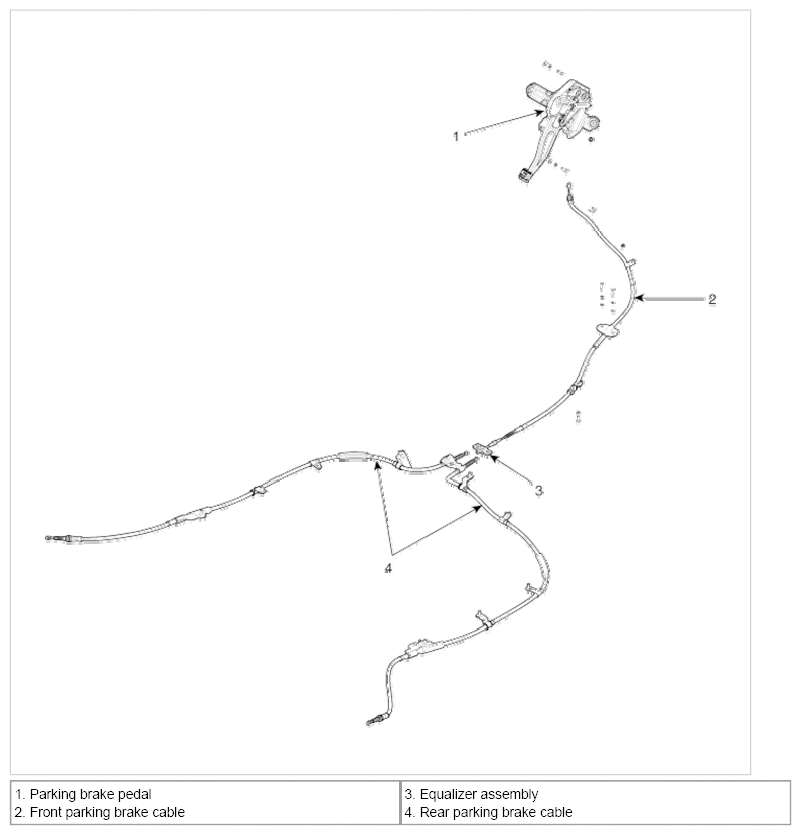

Fig 1: Identifying Parking Brake System Components (1 Of 2)
G06857781Courtesy of HYUNDAI MOTOR CO.

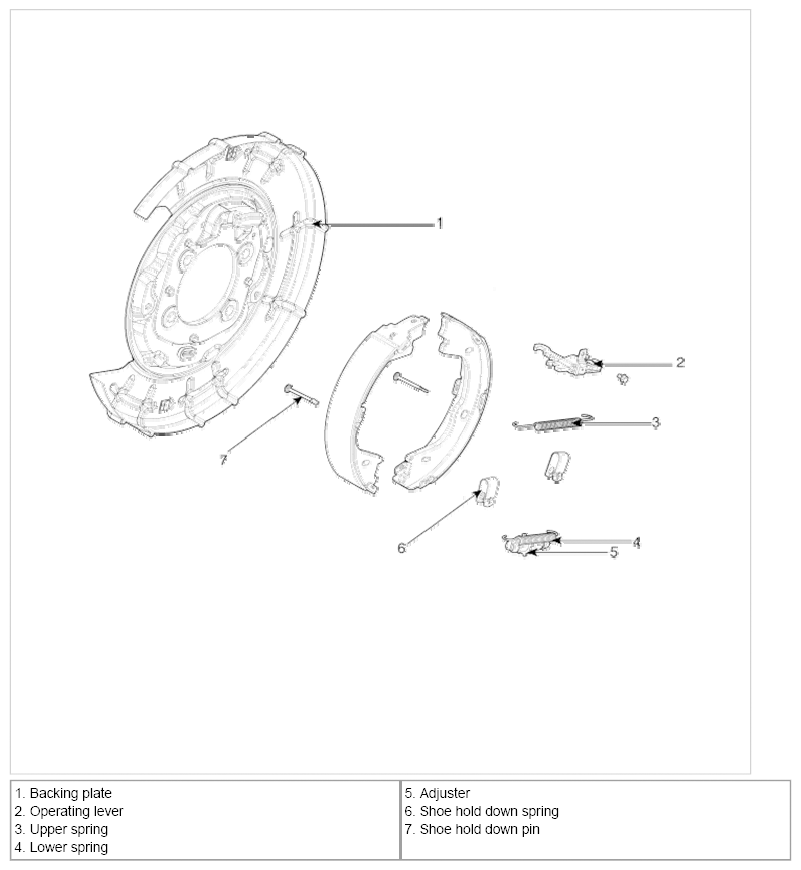

Fig 2: Identifying Parking Brake System Components (2 Of 2)
G06857782Courtesy of HYUNDAI MOTOR CO.
