Repair procedures: Removal

NOTE:
  • Put on gloves to protect your hands.
  • Use seat covers to avoid damaging any surfaces.
  1. Remove the following items.
    1. Front pillar trim, both sides.
    2. Windshield wiper arms and cowl cover.

      (Refer to WINDSHIELD WIPER/WASHER ).

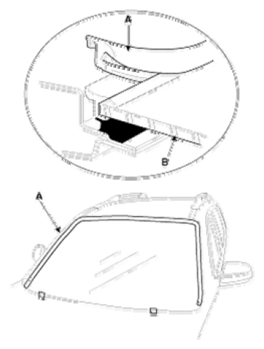

  2. Remove the molding (A) from the edge of the windshield (B). If necessary, cut the molding with a utility knife.
    Fig 1: Identifying Molding
    G06858018Courtesy of HYUNDAI MOTOR CO.

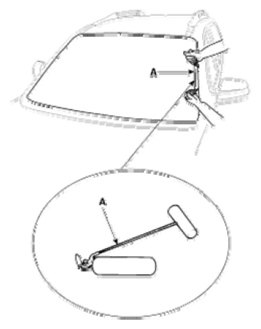

  3. Cut out the sealant using the sealant cutting tool (A) (09861-31100).
    Fig 2: Identifying Sealant Cutting Tool
    G06858019Courtesy of HYUNDAI MOTOR CO.
  4. Remove the windshield (A) carefully using the glass holder (B) (09861-31100).
    Fig 3: Removing Windshield
    G06858020Courtesy of HYUNDAI MOTOR CO.
