Headliner Replacement

NOTE:

Put on gloves to protect your hands.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
Take care not to bend or scratch the trim and panels.

Remove the following items :
1. Front seat assembly.
2. Rear seat assembly.
3. Door scuff trim.
4. Front pillar trim.
5. Center pillar trim.
6. Rear pillar trim.
7. Overhead console.
8. Room lamp.
9. Sunvisor.
10. Assist handle
Remove the connector (B).
Remove the headliner (A).

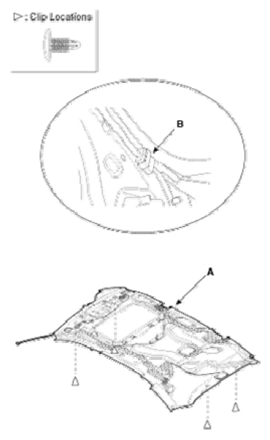

Fig 1: Identifying Headliner
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE:
- Replace any damage clips.
