Glove Box Replacement

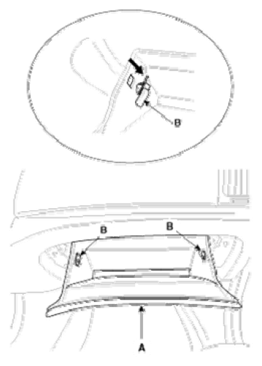

Disconnect the damper (B) from the glove box (A).

Fig 1: Identifying Glove Box
Courtesy of HYUNDAI MOTOR CO.
Remove the side damper (A) from the glove box (B).

Fig 2: Identifying Side Damper
Courtesy of HYUNDAI MOTOR CO.

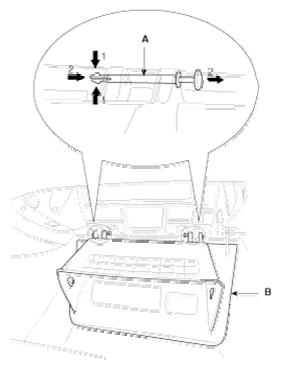

Disconnect the pin (A), then remove the glove box (B).

Fig 3: Identifying Pin And Glove Box
Courtesy of HYUNDAI MOTOR CO.

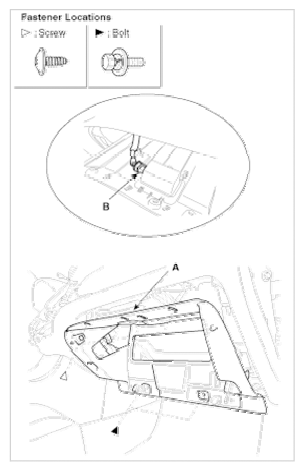

After loosening the mounting screws and bolts, then remove the glove box housing (A).

Fig 4: Identifying Glove Box Housing
Courtesy of HYUNDAI MOTOR CO.
Disconnect the connector (B).
Installation is the reverse of removal.
