Center Facia Panel Replacement

NOTE:
  • When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Put on gloves to protect your hands.
  1. Remove both air vent (A).
    Fig 1: Identifying Air Vent
    G06857981Courtesy of HYUNDAI MOTOR CO.
  2. Remove the facia panel (A).

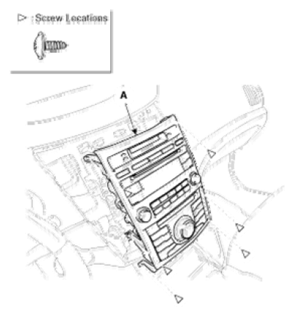

    Fig 2: Identifying Facia Panel
    G06857982Courtesy of HYUNDAI MOTOR CO.
  3. Installation is the reverse of removal.
