Repair procedures: Inspection

  1. With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat switch.
    Fig 1: Identifying Power Seat Switch Connector Terminals
    G06858245Courtesy of HYUNDAI MOTOR CO.

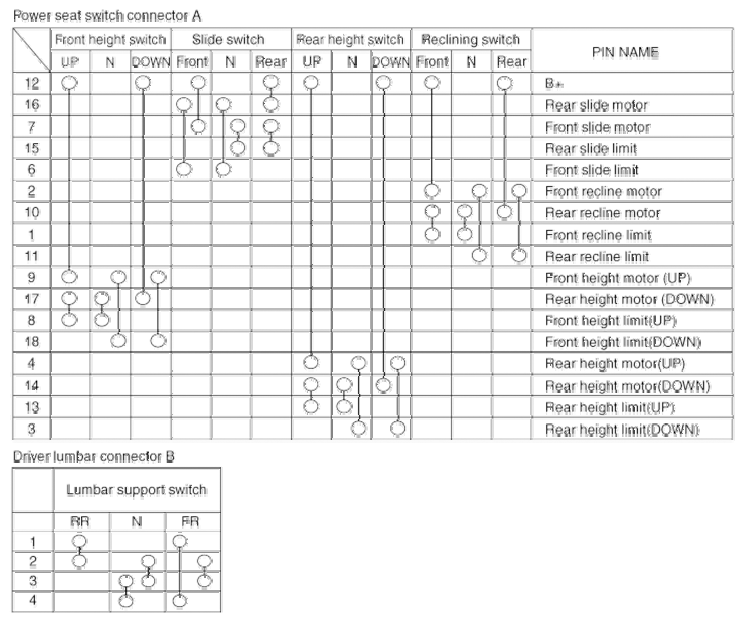

    Fig 2: Power Seat Switch Continuity Chart
    G06858246Courtesy of HYUNDAI MOTOR CO.
