Body Dimensions
>>
Rear Body
>>
Body Repair
Body Repair

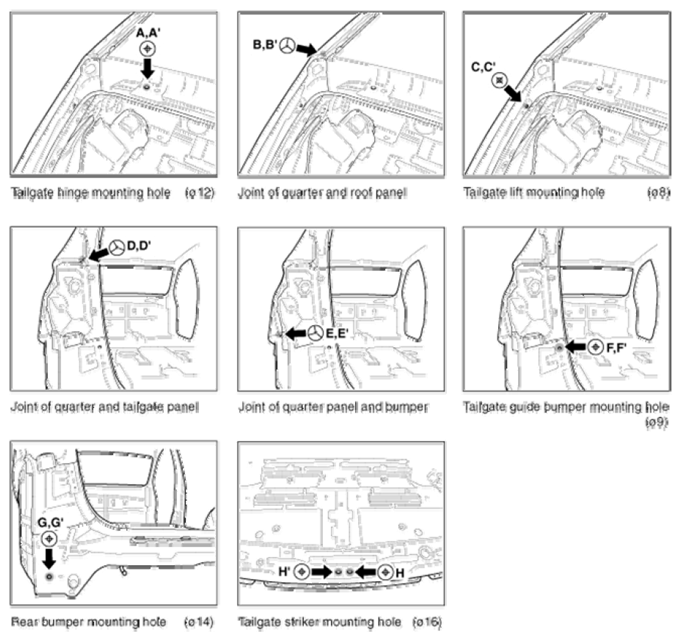

Fig 1: Identifying Rear Body Dimensions (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

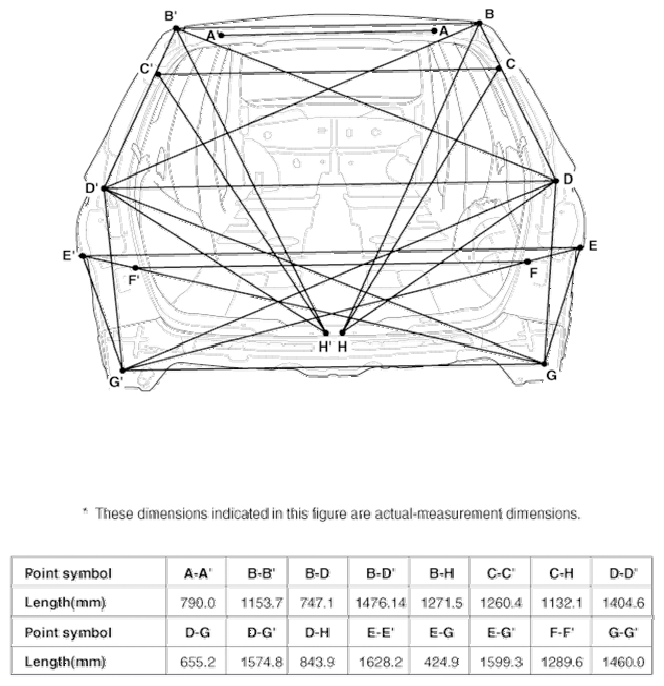

Fig 2: Identifying Rear Body Dimensions (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
