Interior B
Interior B

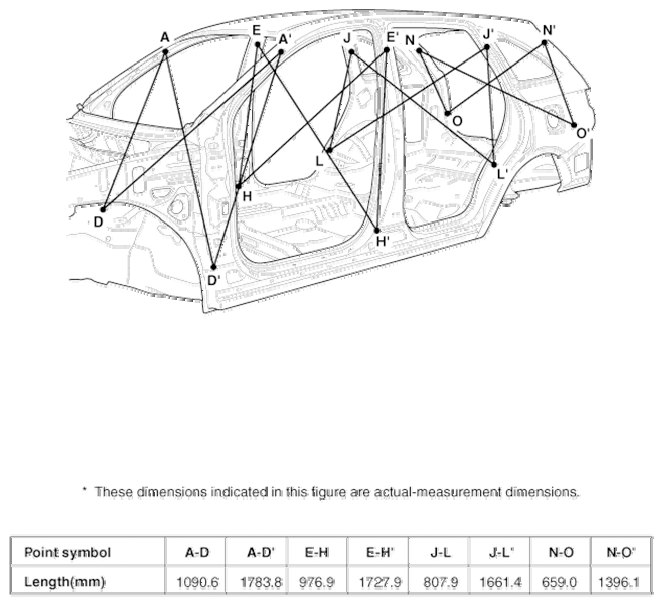

Fig 1: Identifying Interior B Dimensions (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

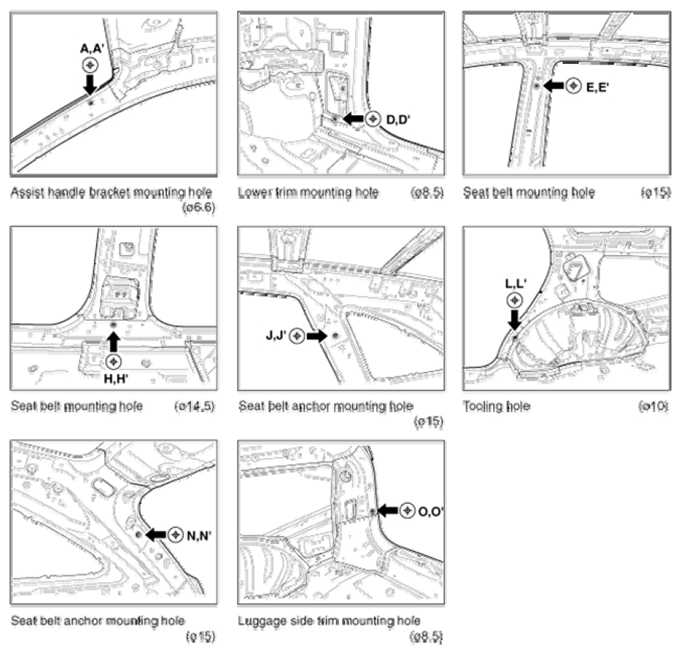

Fig 2: Identifying Interior B Dimensions (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
