Interior A

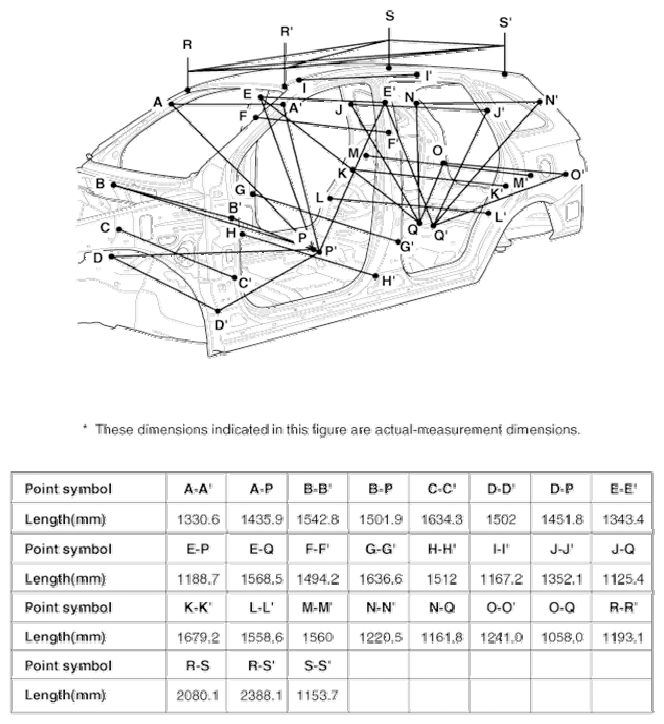

Fig 1: Identifying Interior A Dimensions (1 Of 3)
G06857870Courtesy of HYUNDAI MOTOR CO.

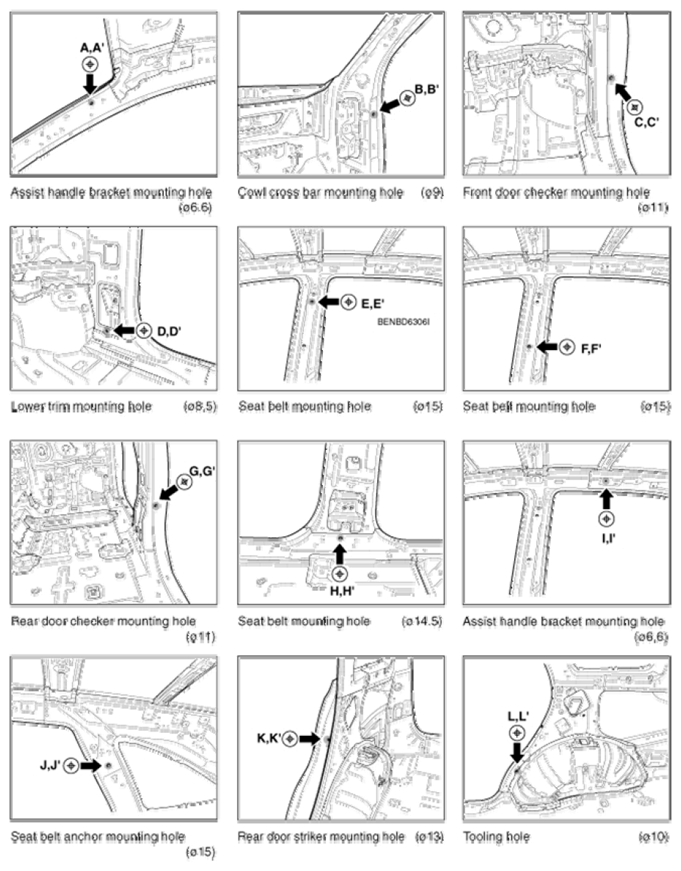

Fig 2: Identifying Interior A Dimensions (2 Of 3)
G06857871Courtesy of HYUNDAI MOTOR CO.

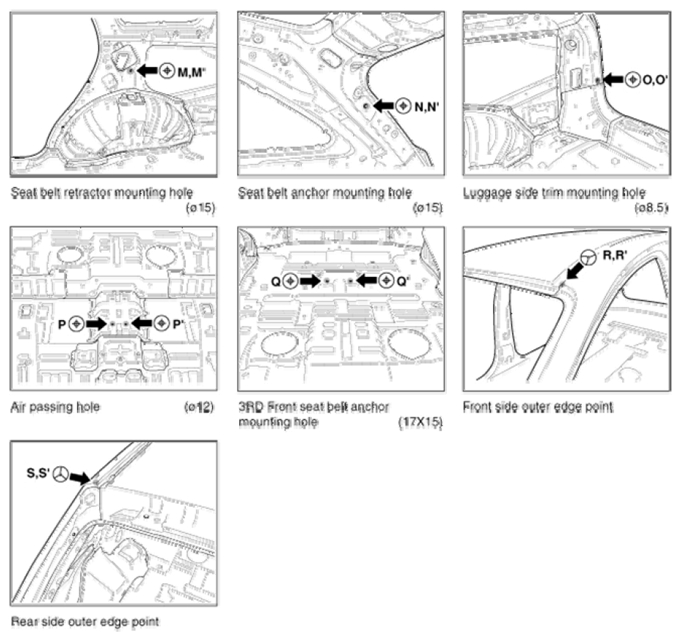

Fig 3: Identifying Interior A Dimensions (3 Of 3)
G06857872Courtesy of HYUNDAI MOTOR CO.
