Components and Components Location: Components

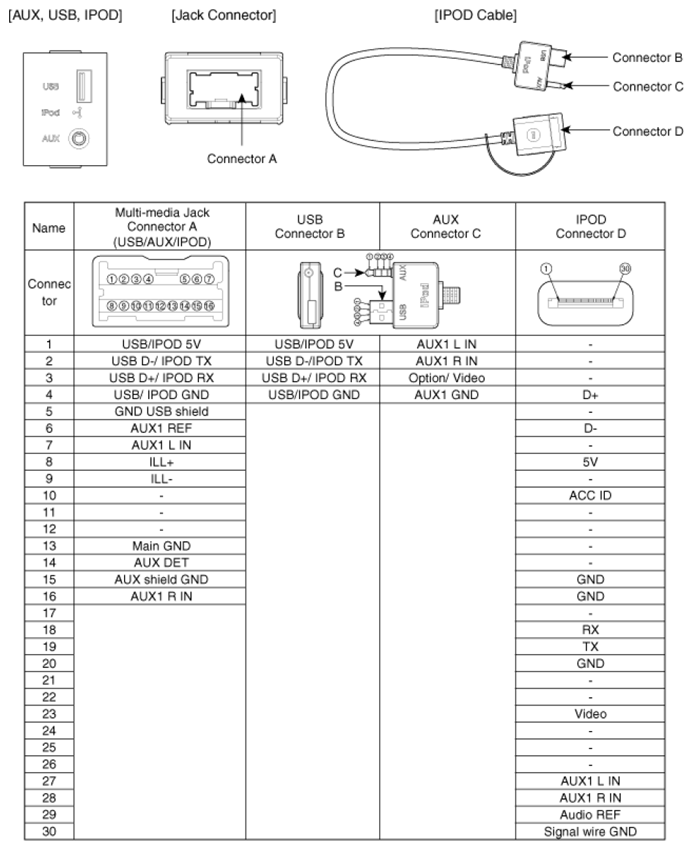

Fig 1: Identifying Multimedia Jack Components

G06858143

Courtesy of HYUNDAI MOTOR CO.
