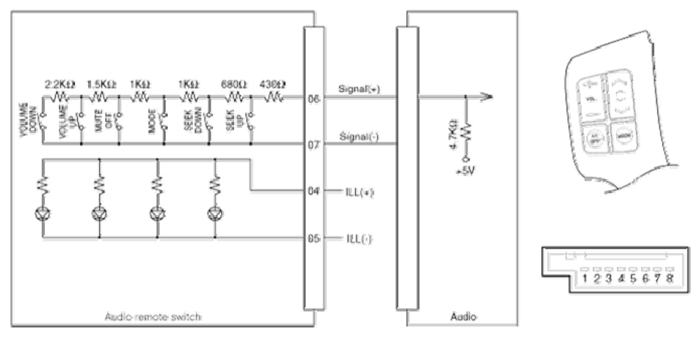

Home >> Hyundai >> 2012 >> Veracruz GLS, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Entertainment Systems >> Audio System >> Audio Remote Control >> Schematic Diagrams >> Circuit Diagram
