Measuring Resistance

  1. Disconnect the cruise control switch connector from the control switch.

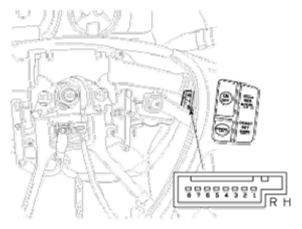

    Fig 1: Identifying Cruise Control Switch Connector Terminals
    G06857068Courtesy of HYUNDAI MOTOR CO.
  2. Measure resistance between terminals on the control switch when each function switch is ON (switch is depressed).
    RESISTANCE SPECIFICATION

    Function switch Terminal Resistance
    Cruise Main 1-3 3.9 kΩ ± 5%
    Cancel 1-2 0 Ω ± 5%
    Set/Coast 1-2 220 Ω ± 5%
    Resume/Accel 1-2 910 Ω ± 5%
  3. If not within specification, replace switch.
