Home >> Hyundai >> 2012 >> Veracruz GLS, AWD >> Repair and Diagnosis (Single Page) >> Brakes >> Traction Control >> Electronic Stability Control (ESC) System (MGH-60) >> ESC Control Module >> Components and Components Location >> Components

Components and Components Location: Components

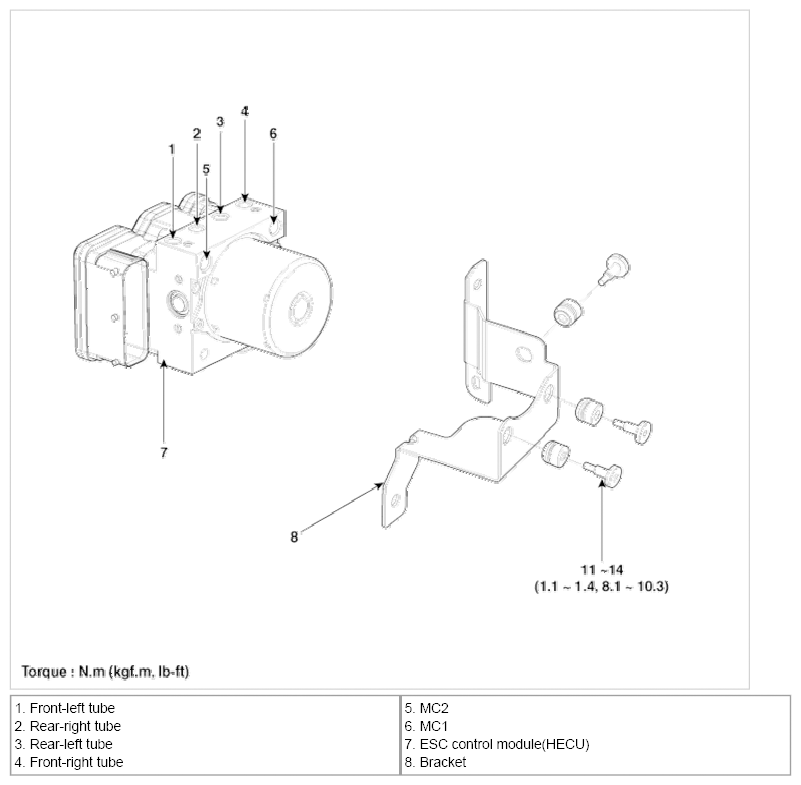

Fig 1: Identifying ESC Control Module Components With Torque Specifications

G06857833

Courtesy of HYUNDAI MOTOR CO.
