Repair Procedures: Removal

Remove the following items;
1. Engine cover (A).
  (Refer to "INTAKE AND EXHAUST SYSTEM ")
2. Air cleaner assembly (B) and air duct (C).
  (Refer to "INTAKE AND EXHAUST SYSTEM ")
3. Battery and battery tray (D).
  (Refer to "CHARGING SYSTEM ")
4. ECM (E).
  (Refer to "Engine Control System" in FL group)

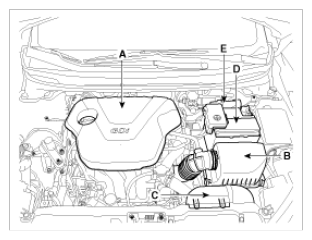

  Fig 1: Identifying Engine Cover, Air Cleaner Assembly, Air Duct, Battery Tray And ECM
  Courtesy of HYUNDAI MOTOR AMERICA

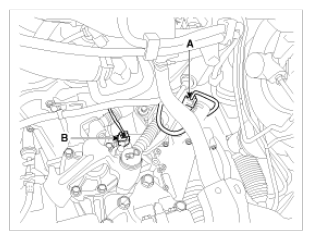

Disconnect the vehicle speed sensor connector (A).
Remove the back up lamp switch connector (B).

Fig 2: Identifying Vehicle Speed Sensor Connector And Back Up Lamp Switch Connector
Courtesy of HYUNDAI MOTOR AMERICA

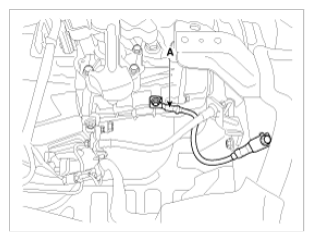

Remove the ground cable from transaxle (A).

Fig 3: Identifying Transaxle Ground Cable
Courtesy of HYUNDAI MOTOR AMERICA

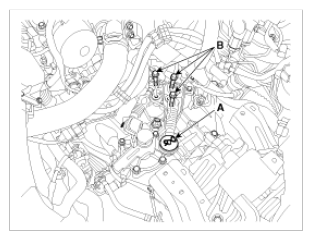

Disconnect the shift cable bracket bolts (B-3ea) after removing the washer and pin (A).

Fig 4: Identifying Shift Cable Bracket Bolts (3EA), Washer And Pin
Courtesy of HYUNDAI MOTOR AMERICA

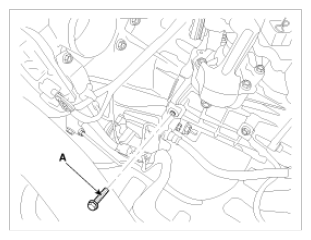

Remove the tube bracket bolt (A).
Tightening torque:

14.7 ~ 21.6 N.m (1.5 ~ 2.2 kgf.m, 10.8 ~ 15.9 lb-ft)

Fig 5: Identifying Tube Bracket Bolt
Courtesy of HYUNDAI MOTOR AMERICA
Remove the transaxle upper mounting bolt (B-2ea) and the start motor mounting bolt (A-2ea).
Tightening torque:

(A, B) 42.2 ~ 54.0 N.m (4.3 ~ 5.5 kgf.m, 31.1 ~ 39.8 lb-ft)

Fig 6: Identifying Transaxle Upper Mounting Bolt And Start Motor Mounting Bolt (2EA)
Courtesy of HYUNDAI MOTOR AMERICA
Remove the cowl top cover.
(Refer to "COWL TOP COVER ".)

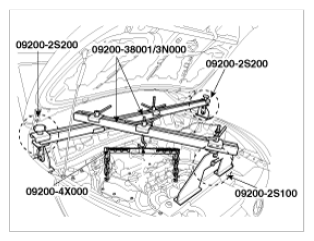

Using the engine support fixture (Support SST No.: 09200-2S100/2S200, Adapter SST No.: 09200-4X000, Beam SST No.: 09200-38001/3N000), hold the engine and transaxle assembly safely.

Fig 7: Holding Engine And Transaxle Assembly Using Engine Support Fixture
Courtesy of HYUNDAI MOTOR AMERICA

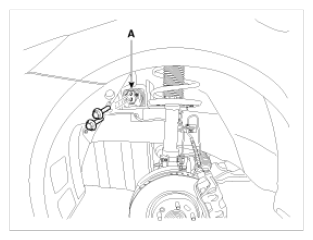

Remove the mounting cover (A).

Fig 8: Identifying Transaxle Support Mounting Cover
Courtesy of HYUNDAI MOTOR AMERICA

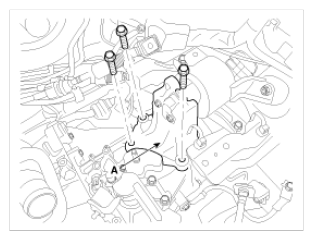

Remove the transaxle support mounting bracket bolts (A-2ea).
Tightening torque:

88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)

Fig 9: Identifying Transaxle Support Mounting Bracket Bolts (2EA)
Courtesy of HYUNDAI MOTOR AMERICA
Remove the transaxle support mounting bracket (A).
Tightening torque:

58.9 ~ 78.5 N.m (6.0 ~ 8.0 kgf.m, 43.4 ~ 57.9 lb-ft)

Fig 10: Identifying Transaxle Support Mounting Bracket
Courtesy of HYUNDAI MOTOR AMERICA

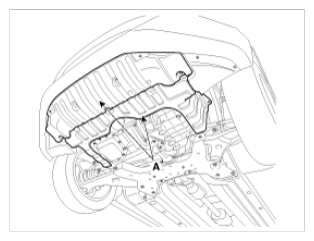

Remove the under cover (A).
Tightening torque:

6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

Fig 11: Identifying Under Cover
Courtesy of HYUNDAI MOTOR AMERICA
Remove the drive shaft assembly.
(Refer to "Drive shaft assembly" in DS group.)

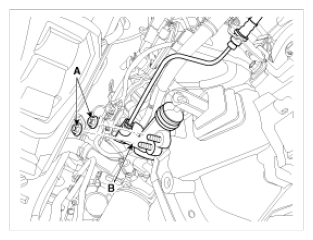

Remove the clutch release cylinder assembly (B) after removing the nuts (A-2ea).
Tightening torque:

14.7 ~ 21.6 N.m (1.5 ~ 2.2 kgf.m, 10.8 ~ 15.9 lb-ft)

Fig 12: Identifying Clutch Release Cylinder Assembly And Mounting Nuts (2EA)
Courtesy of HYUNDAI MOTOR AMERICA

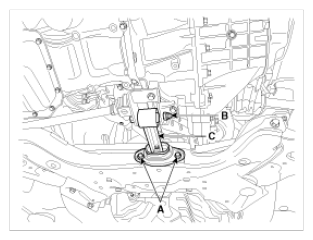

Remove the roll rod support bracket (C) after removing bolt (A, B).
Tightening torque:
1. 49.0 ~ 68.6 N.m (5.0 ~ 7.0 kgf.m, 36.2 ~ 50.6 lb-ft)
2. 107.9 ~ 127.5 N.m (11.0 ~ 13.0 kgf.m, 79.6 ~ 94.1 lb-ft)

  Fig 13: Identifying Roll Rod Support Bracket And Mounting Bolt
  Courtesy of HYUNDAI MOTOR AMERICA

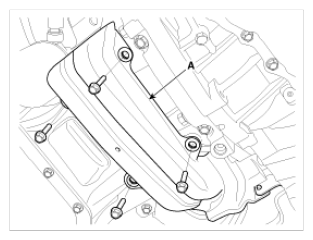

Remove the drive shaft cover (A).

Fig 14: Identifying Drive Shaft Cover
Courtesy of HYUNDAI MOTOR AMERICA

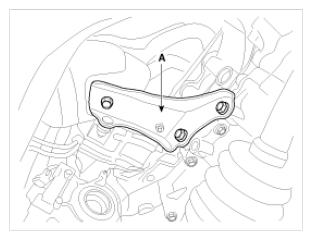

Remove the brackets (A).

Fig 15: Identifying Brackets
Courtesy of HYUNDAI MOTOR AMERICA

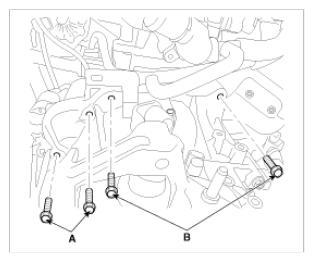

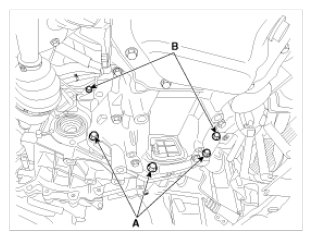

Remove the lower mounting bolts (A-3ea, B-2ea) of lower part of the transaxle, and remove the transaxle assembly by supporting it with a jack.
CAUTION: Be careful not to damage other system or parts near by when removing the engine and transaxle assembly.

Tightening torque:
1. 43 ~ 49 N.m (4.3 ~ 4.9 kgf.m, 31.1 ~ 35.4 lb-ft)
2. 43 ~ 55 N.m (4.3 ~ 5.5 kgf.m, 31.1 ~ 39.8 lb-ft)

  Fig 16: Identifying Transaxle Lower Part Mounting Bolts (3EA, 2EA)
  Courtesy of HYUNDAI MOTOR AMERICA
