Home >> Hyundai >> 2012 >> Veloster Standard Trans >> Repair and Diagnosis >> Transmission >> Clutch >> Clutch System >> Clutch Cover And Disc >> Components and Components Location >> Components

Components and Components Location: Components

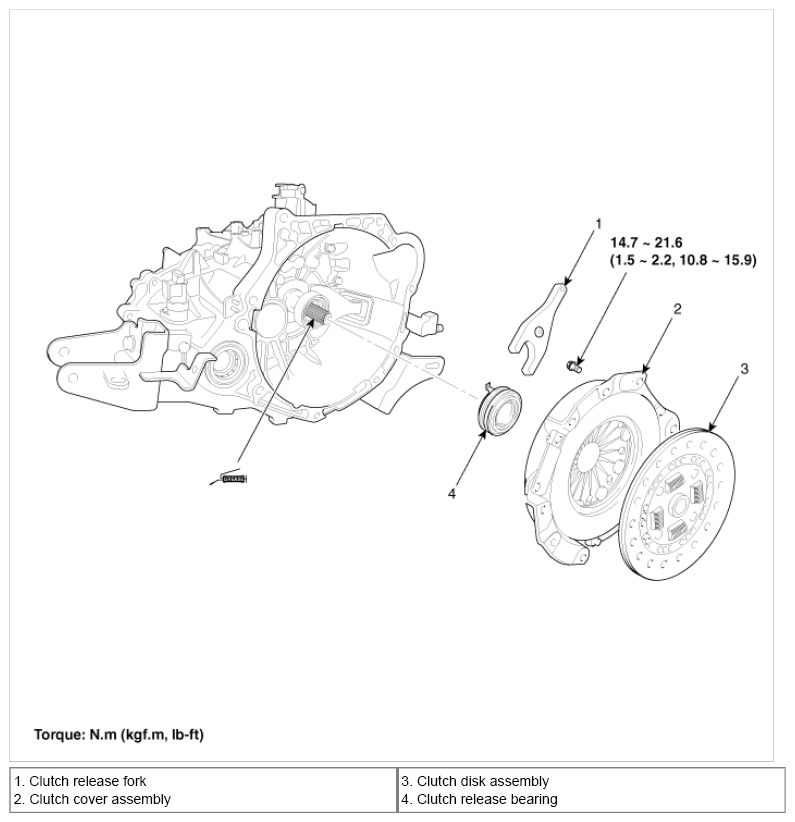

Fig 1: Clutch Cover And Disc Replacement Components With Torque Specifications

G08807136

Courtesy of HYUNDAI MOTOR AMERICA
