General Information: General Description
WARNING: This page is about a different car, the 2013 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.
This is DTC which is related with communication error between IPM and other units.

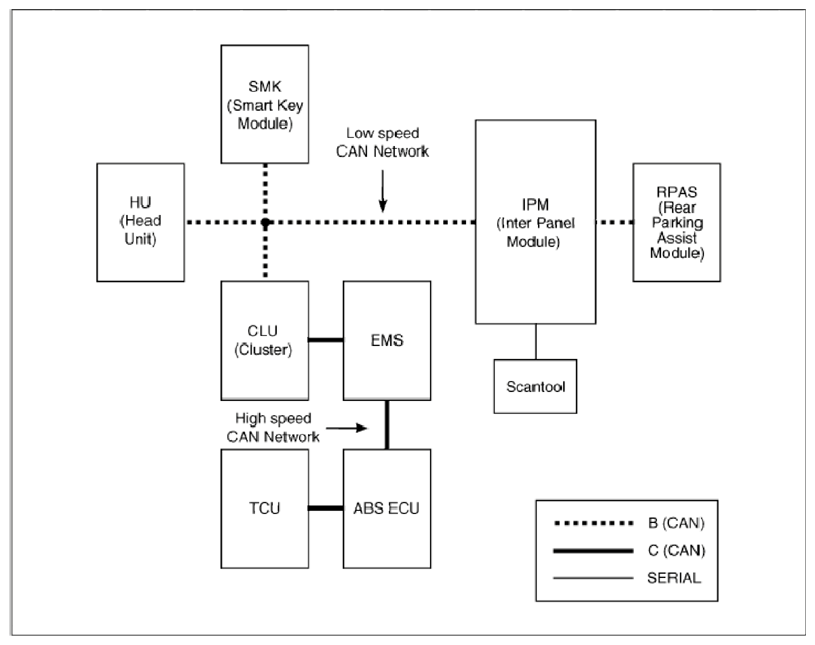

Body CAN communication Control Units: IPM (Inter Panel Module), CLU (Cluster), SMK (Smart Key), HU (Head Unit).
*1 CAN (Controller Area Network): CAN is serial bus communication type which links not only communication system but also control units each other.
*2 LIN (Local Interconnect Network): LIN is serial communication type which is used in electrical control system. (This is less expensive.)
