Circuit Diagram

WARNING: This page is about a different car, the 2014 Hyundai Veloster and 2013 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

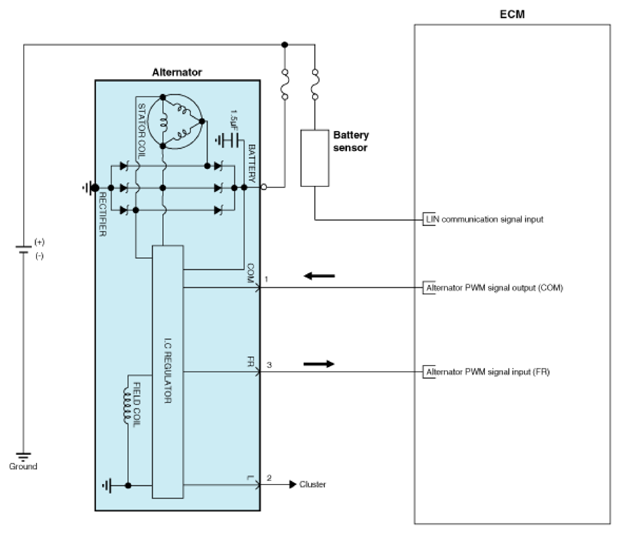

Fig 1: Alternator And ECM Circuit Diagram
G09150289Courtesy of HYUNDAI MOTOR AMERICA
