Repair Procedures: Removal

WARNING: This page is about a different car, the 2014 Hyundai Veloster and 2013 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear wheel & tire.
Tightening torque:

88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)
Release the parking lever and parking brake cable is loose.
Remove the parking brake cable (B), after removing the clip (A).

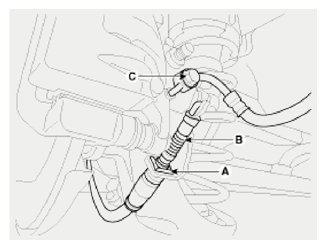

Fig 1: Identifying Parking Brake Cable, Hose Eyebolt And Clip
Courtesy of HYUNDAI MOTOR AMERICA

NOTE: Parking brake lever in the car must be in fully loosened position.
Remove the hose eyebolt (C).
Tightening torque:

Brake hose to caliper (C):

24.5 ~ 29.4 N.m (2.5 ~ 3.0 kgf.m, 18.1 ~ 21.7 lb-ft)
Loosen the caliper mounting bolts (B), then remove the rear caliper assembly (A).
Tightening torque:

Caliper assembly to carrier:

63.7 ~ 73.5 N.m (6.5 ~ 7.5 kgf.m, 47.0 ~ 54.2 lb-ft)

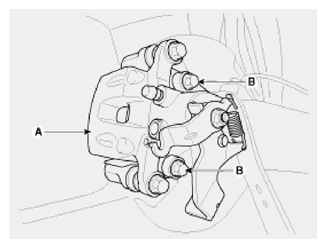

Fig 2: Identifying Rear Caliper Assembly With Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA
Remove the rear brake disc by loosening the screws (A).
Tightening torque:

4.9 ~ 5.8 N.m (0.5 ~ 0.6 kgf.m, 3.6 ~ 4.3 lb-ft)

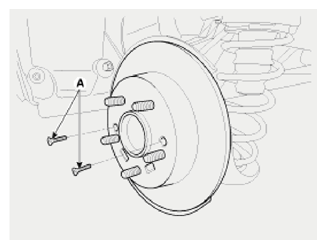

Fig 3: Identifying Rear Brake Disc Screws
