Repair Procedures: Inspection

WARNING: This page is about a different car, the 2014 Hyundai Veloster and 2013 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check the bushing for wear.
  2. Check the brake pedal for bending or twisting.
  3. Check the brake pedal return spring for damage.
  4. Check the stop lamp switch.
    1. Connect a circuit tester to the connector of stop lamp switch, and check whether or not there is continuity when the plunger of the stop lamp switch is pushed in and when it is released.
    2. The stop lamp switch is in good condition if there is no continuity when plunger (A) is pushed.

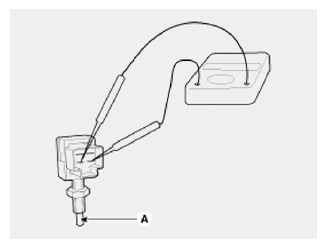

      Fig 1: Checking Stop Lamp Switch
      G09133829Courtesy of HYUNDAI MOTOR AMERICA
