Components (1)

WARNING: This page is about a different car, the 2014 Hyundai Veloster and 2013 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

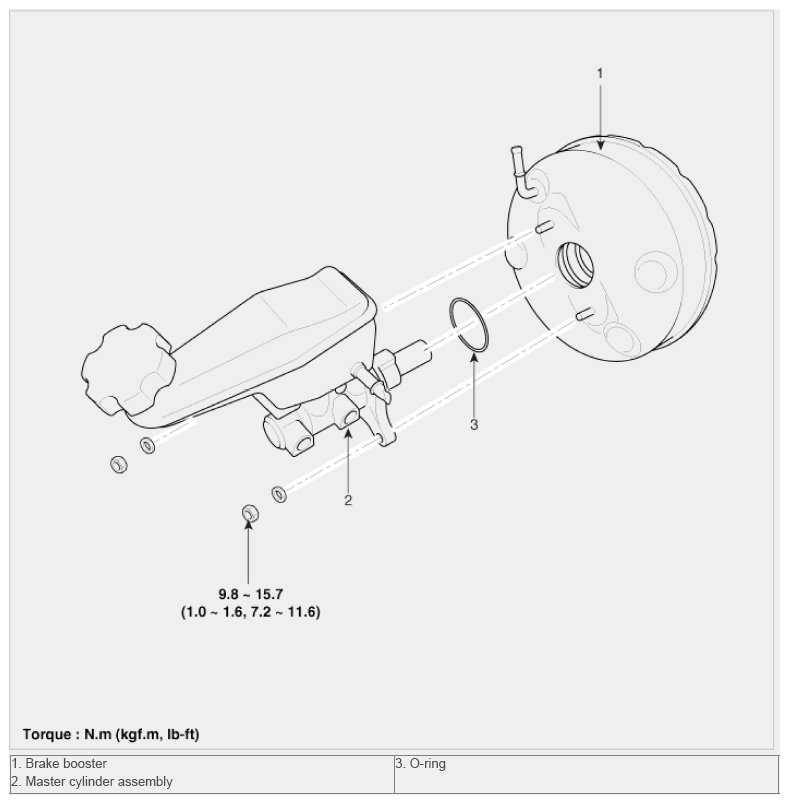

Fig 1: Brake Booster, Master Cylinder Assembly, O-Ring With Torque Specifications

Courtesy of HYUNDAI MOTOR AMERICA
