Repair Procedures: Removal

WARNING: This page is about a different car, the 2014 Hyundai Veloster and 2013 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

Rear Combination lamp

Disconnect the negative (-) battery terminal.
Disconnect the connector (B) after loosening 2 screws, and then remove the rear combination lamp (A).

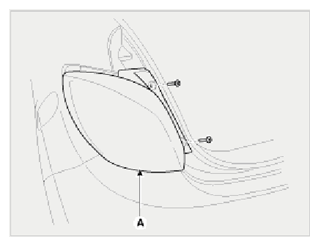

Fig 1: Identifying Rear Combination Lamp
Courtesy of HYUNDAI MOTOR AMERICA

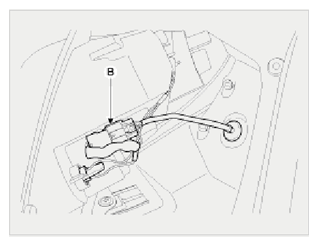

Fig 2: Identifying Rear Combination Lamp Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the bulb after turning in the counterclockwise direction.
1. Side marker lamp
2. Tail lamp/Stop lamp
3. Back up lamp
4. Turn signal lamp

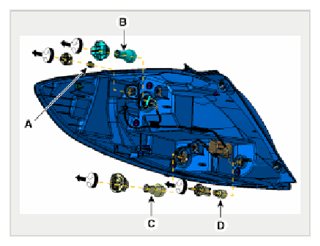

  Fig 3: Identifying Side Marker, Tail Lamp/Stop, Back Up And Turn Signal Lamp
  Courtesy of HYUNDAI MOTOR AMERICA
