Repair Procedures: Removal

WARNING: This page is about a different car, the 2014 Hyundai Veloster and 2013 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the tailgate center trim.

    (Refer to TAIL GATE

  3. Loosen 4 nuts and remove the rear garnish assembly after disconnecting the connector.
  4. Loosen 5 screws and remove the garnish cover (A).
    Fig 1: Identifying Garnish Cover
    G09135304Courtesy of HYUNDAI MOTOR AMERICA
  5. Loosen 4 screws and remove the high mounted stop lamp (A).

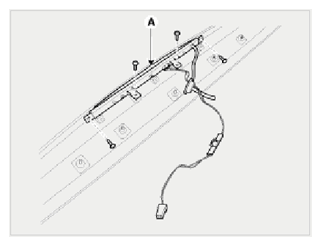

    Fig 2: Identifying High Mounted Stop Lamp
    G09135305Courtesy of HYUNDAI MOTOR AMERICA
